Product Description

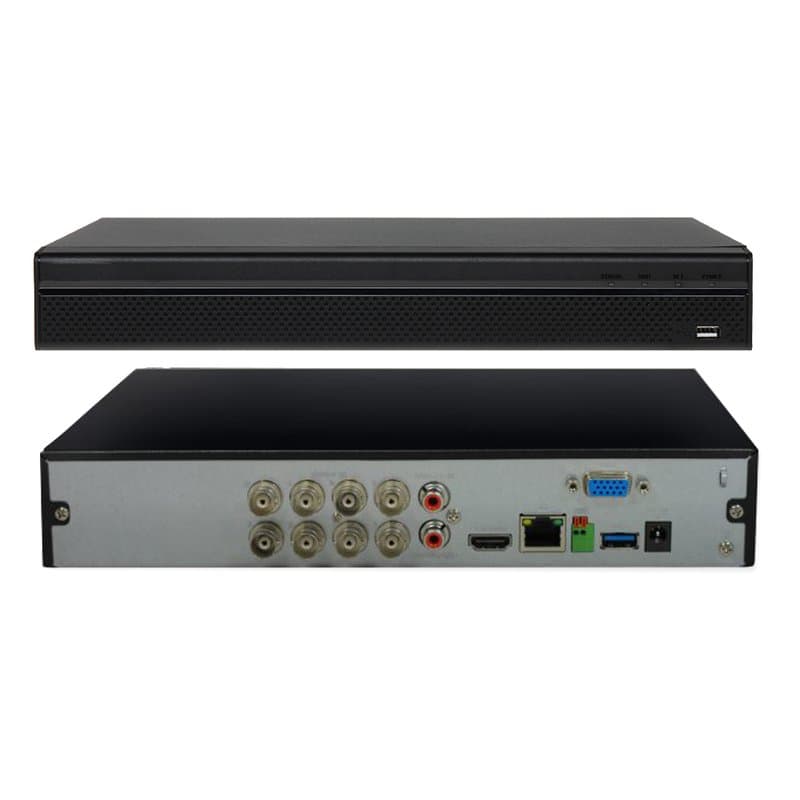

The XVR-3108AD-4MP is an 8-channel hybrid DVR built for jobs where the camera estate isn't all one format. It accepts TVI, AHD, HDCVI and CVBS analog cameras alongside IP cameras in hybrid mode, so a mixed estate — legacy coax runs plus newer network cameras — can sit on one recorder rather than two separate systems.
Where it fits
- Analog-to-IP migrations: retail units or offices upgrading a coax-cabled system can add IP cameras without ripping out existing cabling.
- Multi-site or phased installs: 8 channels suit small warehouses, shop premises, or residential blocks with communal areas plus individual entrances.
- Mixed-vendor estates: installers combining cameras from different manufacturers benefit from the multi-format input support.
Key specs
- 8 channels, hybrid TVI/AHD/HDCVI/CVBS/IP support
- Recording resolution up to 4MP
- Uses H.264/H.265 compression to make better use of storage.
- HDMI and VGA outputs for local monitoring
- 1 SATA HDD bay for internal storage
- USB ports for backup and firmware updates
- Remote viewing via mobile app and network client
Selection notes
Confirm the number of IP channels needed in hybrid mode against the total 8-channel count before specifying, and size the SATA drive to the expected retention period and camera resolution, since only one HDD bay is fitted.
Specifications
- Brand
- Generic
- Model
- XVR-3108AD-4MP
- Channels
- 8-CH
- Max Resolution
- 4 MP
- Colour
- Black
- Built-in PoE Ports
- 10 PoE
- Video Compression
- H.265
- Recording Resolution
- 4MP
- Max Output Resolution
- 4MP
- Camera Compatibility
- Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any ONVIF-conformant IP camera.
- Storage Capacity
- Up to 10 TB
- Technology
- XVR
- Video Outputs
- HDMI, VGA
Technical Specifications
Frequently Asked Questions
Can the XVR-3108AD-4MP record IP cameras as well as analog ones?
Yes — it runs in hybrid mode, accepting TVI, AHD, HDCVI and CVBS analog cameras alongside additional IP cameras on the same recorder.
What resolution can this DVR record at?
It supports recording up to 4MP resolution across its channels.
How much storage can I fit inside the unit?
The DVR takes one SATA HDD internally; drive capacity should be matched to your camera count, resolution and required retention period.
Can I view footage remotely from this DVR?
Yes, remote viewing is supported through a mobile app and network access alongside the local HDMI/VGA outputs.
