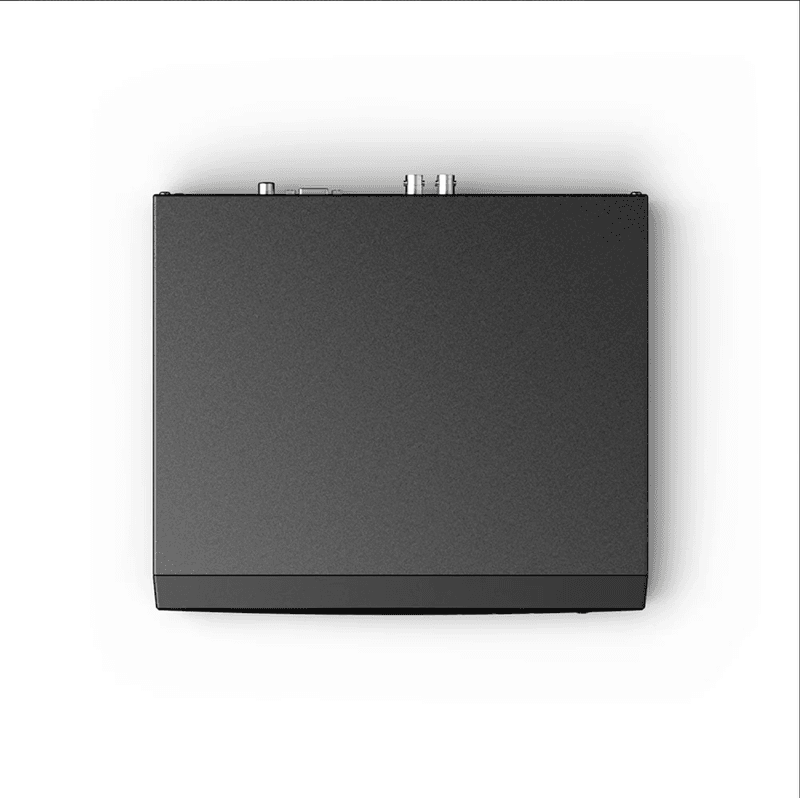

5MP 4 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, H.265+, Supports up to 4 BNC Cameras & One IP Camera

5MP 4 Channel DVR - Hybrid 5-in-1, H.265+, 1 IP Channel

The Annke DW41JD is a 4-channel hybrid recorder for jobs that mix legacy analog cameras with newer IP cameras, without a forklift upgrade. It takes up to 4 BNC (TVI/AHD/CVI/CVBS) inputs plus one IP camera, so a retail unit or small office running older coax cameras can add a single IP camera to cover a new area without swapping the whole system.

Key specs

• Channels: 4 BNC (5-in-1: TVI/AHD/CVI/CVBS) + 1 IP camera
• Max analog input: up to 5MP TVI, 4MP AHD/CVI, plus CVBS and IP sources — live view up to 5MP, recording at 2.5MP
• Compression: H.265+, cited as recording up to 98 days continuously across 4 cameras on a 1TB HDD, 7 times longer than H.264
• Video output: HDMI and VGA, both 1080p full-HD capable (default output resolution 1024x768, adjustable manually)

Where it fits

Suits small-to-medium premises — retail counters, single-office sites, or residential blocks — where the existing analog cabling stays in place but one new IP camera needs to go in to cover extra ground. Motion detection can be zoned to specific areas of a scene, cutting down on irrelevant alerts, and triggered events send instant email alerts with snapshots plus app pushes. Smart playback lets you jump to periods with detected movement rather than scrubbing footage manually. Remote viewing runs through the Annke Vision app via a QR-code setup, covering smartphone, tablet and PC access. Password and encryption controls are available to restrict who can view or configure the system.
