Product Description
Fits jobs where cameras predate the recorder
The ANNKE D941BB is a 4-channel hybrid DVR built for sites carrying a mix of analogue camera generations, or a small install that's outgrown SD footage. It reads TVI, AHD, CVI and CVBS signals plus IP camera input, so an existing analogue run generally doesn't need re-cabling to bring in higher-resolution recording.
Where it typically gets specified
- Retail units and small offices upgrading from an older DVR to 8MP without swapping every camera on the wall
- Homes and small shops where human & vehicle detection cuts false alerts from pets, shadows or passing traffic
- Mixed-format sites running some legacy analogue cameras alongside newer IP units on one recorder
Key specs
- Max resolution: Delivers 8MP / 4K (3840×2160) when paired with supported analogue cameras
- Channels: 4 analogue BNC inputs, hybrid/IP capable
- Compression: H.265+, H.265, H.264+/H.264, reducing storage load for longer retention periods

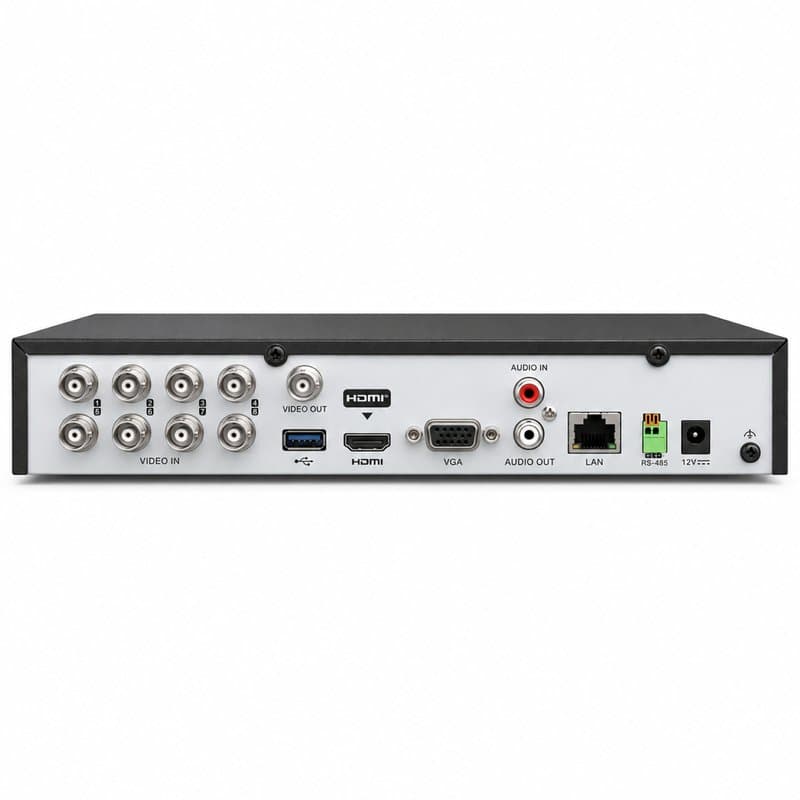

- Outputs: HDMI and VGA for local monitoring
- Detection: Human & vehicle detection on analogue channels
- Remote access: ANNKE Vision app, web and mobile
- Storage: 1× SATA interface, supports 1TB and larger HDDs
- Power: 12V DC
Planning a deployment
Match camera resolution to channel capability before ordering — 8MP recording only applies where the connected camera and signal format both support it. Confirm HDD capacity against expected retention before fitting, since storage is not bundled with the recorder itself.
Specifications
- Brand
- ANNKE
- Resolution
- 8MP
Technical Specifications
Frequently Asked Questions
Can the D941BB accept IP cameras as well as analogue ones?
Yes — it's a hybrid 5-in-1 DVR, so it takes IP camera input alongside its 4 analogue BNC channels.
Will it record at 8MP on any analogue camera I connect?
Only where the connected camera and signal format both support 8MP; check the camera's spec against TVI/AHD/CVI/CVBS compatibility first.
Does it come with a hard drive?
The dossier lists a single SATA interface supporting 1TB and larger HDDs, but the drive itself is fitted separately.
How is footage monitored remotely?
Through the ANNKE Vision app, web browser, or mobile device, alongside local HDMI or VGA monitoring on site.
