Product Description
Where a 1x2 splitter fits a job

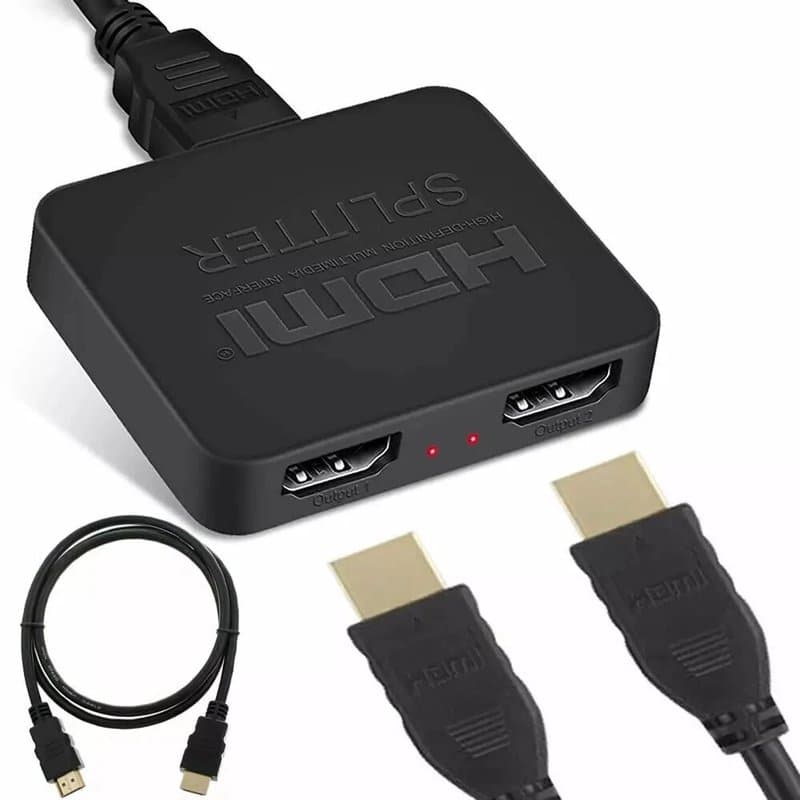

The 2 Way HDMI Splitter 4K UHD HDMI 1x2 Distribution Amplifier (SKU HDMI-SPLITTER-2WAY-4K, also listed as DZ000059) takes one HDMI-compatible input and feeds two sink devices. It is described for supermarkets, shopping malls, conference-room presentations, education and training, corporate showrooms, data control centres and home theatres.
Selection factors
- Resolution: up to 1920x1080 at 60Hz, HDMI-compatible 1.4a. The 4K UHD in the name does not change that ceiling, so match it to Full HD displays.
- Cable runs: input up to 15 m, output up to 20 m on AWG26 HDMI-compatible cable.
- Signal handling: signal retiming, CEC, Full 3D, deep colour 30bit and 36bit.
- Audio formats: DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD and HD (HBR).
- Bandwidth: 225MHz maximum, with a 2.25Gbps maximum baud rate.
- Power: supplied with a USB power cable; maximum working current 350mA.
- Size: 62 x 51 x 11mm. Operating humidity 5 to 90%RH, no condensation.
Before you specify it
Check that the source and both displays work at 1080p/60Hz or below, and plan a USB power point close to the unit. The box contains the splitter and the USB power cable.
Specifications
- Product Type
- 2-Way HDMI Splitter
- HDMI Inputs
- 1
- HDMI Outputs
- 2
- Maximum Resolution
- 4K, as indicated by the model name
Technical Specifications
Frequently Asked Questions
What is the maximum resolution of the 2 Way HDMI Splitter 4K UHD HDMI 1x2 Distribution Amplifier?
It supports up to 1920x1080 at 60Hz and is HDMI-compatible version 1.4a.
How long can the HDMI cables be?
The input side supports up to 15 m and the output side up to 20 m, using AWG26 HDMI-compatible cable.
How is the splitter powered?
It is supplied with a USB power cable, and its maximum working current is 350mA.
Does it support CEC and signal retiming?
Yes, both CEC and signal retiming are listed, along with Full 3D and deep colour at 30bit and 36bit.
