Product Description

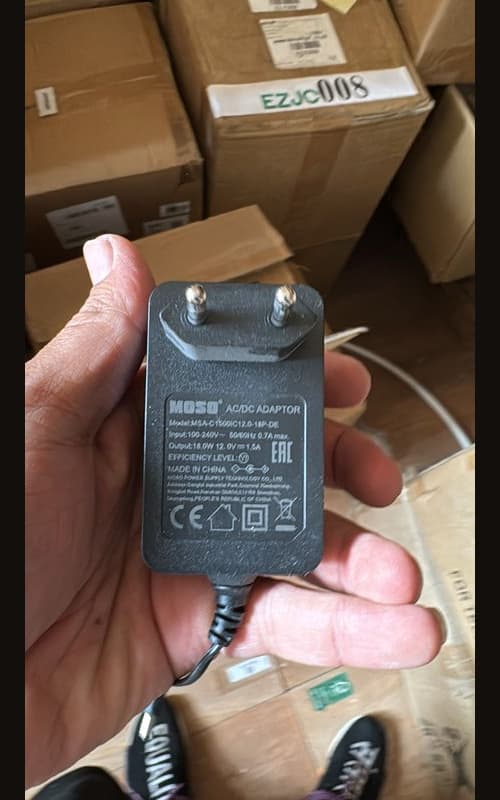

MOSO Power Unit 12V 1.5A (SKU MOSO-PSU-12V-1.5A-EU) is a 12V DC mains power supply that provides up to 18W through an EU-type plug.
Spec at a glance
- Output: 12V DC, 1.5A
- Maximum power: 18W
- Mains plug: EU
- Connector: size and polarity must match the equipment being powered
Planning it into a job
On retail, warehouse, office or residential block projects, the power supply schedule is where mismatches creep in. Before this unit goes on a parts list, check the equipment's rating label for three things: 12V DC input, connector size and polarity.
Then add up the load. Everything drawing from one adapter has to stay within the 18W ceiling.
If the equipment is an IR camera, check the night-time case. IR LEDs draw more power after dark, and a weak or unstable supply, or a long or poor-quality cable run, can cause voltage drop. The result is flickering or a black image at night. Check the adapter rating and the cable length and quality together.
The plug is EU type, so allow for that when you plan the mains side of the installation.
Specifications
- Voltage
- 12V
- Current
- 1.5A
Frequently Asked Questions
What does the MOSO Power Unit 12V 1.5A output?
It outputs 12V DC at 1.5A, which is up to 18W.
What should I match before ordering?
Match the equipment's 12V DC input, connector size and polarity against its rating label.
Can a weak supply cause IR cameras to flicker at night?
Yes. IR LEDs draw more power at night, so an under-rated supply or a long, poor-quality cable run can cause voltage drop, flickering or a black image.
What mains plug does it have?
It has an EU mains plug.
