Product Description

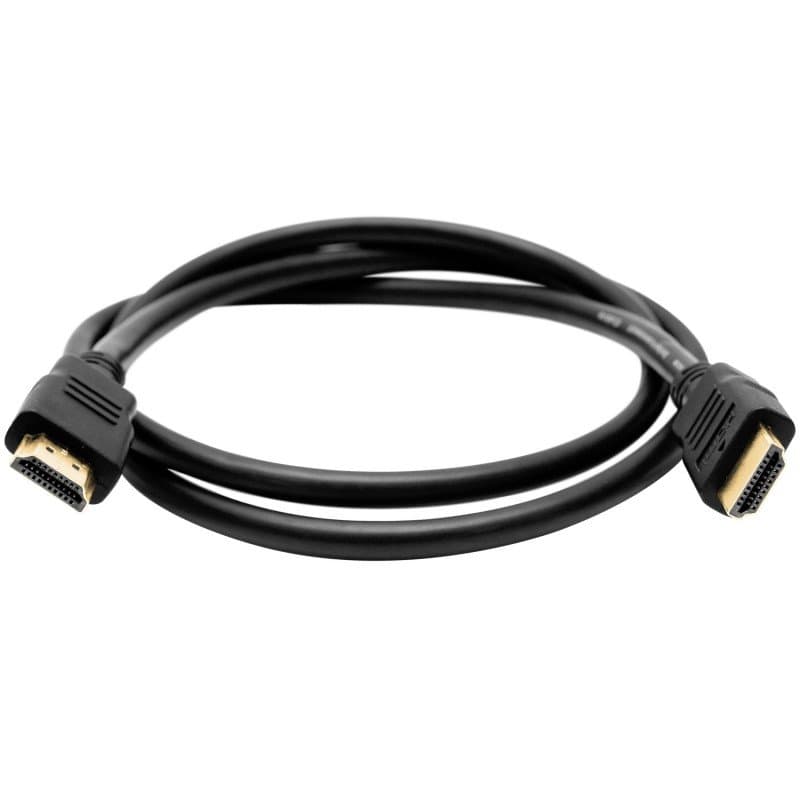

Purpose-built for linking rack-mounted NVRs or DVRs to control room monitors without needing a booster over standard rack-to-desk distances. This is a 3m HDMI-A male to male lead in black PVC, rated High Speed HDMI 2.0, Premium Certified.
Key specs
- Bandwidth: 18Gbps
- Resolution: 4K@60Hz (3840x2160) at 4:4:4 chroma; backward compatible to HDMI 1.4 for 1080p@120Hz NVR outputs

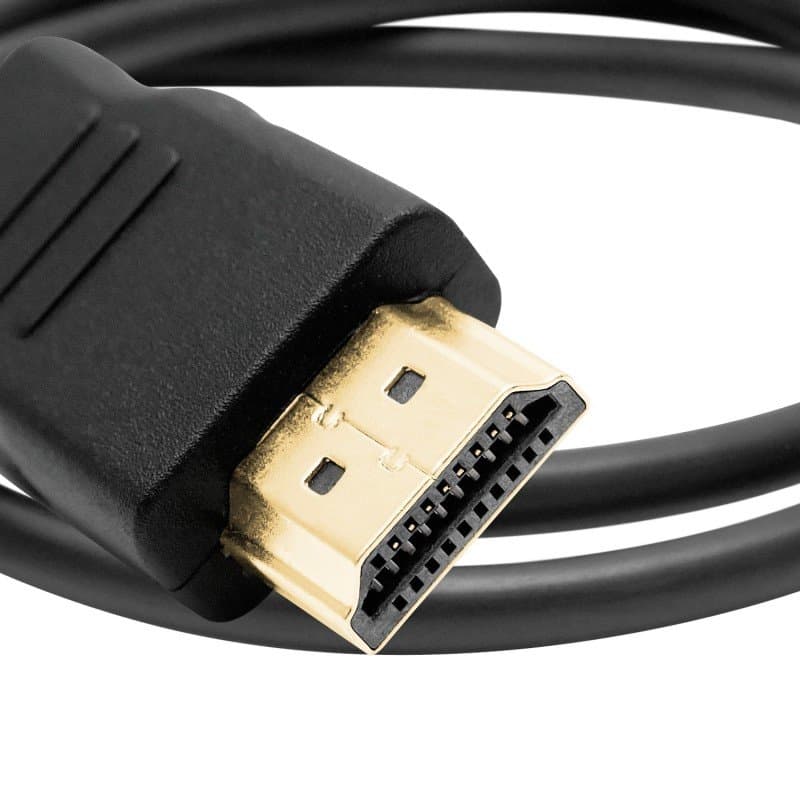

- Conductors: 30AWG OFC copper, triple shielding (foil + braid), 24K gold-plated pins
- Jacket: 6mm OD PVC jacket with a moulded strain relief and a 40mm bend radius.
- Features supported: Supports HDR, ARC, CEC, HDCP 2.2, Ethernet channel and Deep Colour.
- Compliance: RoHS
Where it fits a job
Sized for the common gap between an equipment rack and an operator station or wall-mounted console in an ops room — one run, no in-line extenders needed. The triple shielding matters where the cable shares trunking or a management arm with Cat6, DC pigtails and rack PDUs, all common neighbours in a security cabinet.
Selection factors
- Confirm your NVR/DVR HDMI output and destination display both support HDMI 2.0 if you need full 4K@60Hz — HDMI 1.4 sources will fall back to 1080p@120Hz.
- Use CEC/ARC support if the install calls for synced power states or audio return to a single operator speaker.
- Gold-plated pins are specified for corrosion resistance and reliable contact across repeated source-switching in live-review setups.
Specifications
- Product Type
- High Speed HDMI Cable
- Connector Type A
- HDMI Type A Male (19-pin)
- Connector Type B
- HDMI Type A Male (19-pin)
- Cable Length
- 3
- HDMI Version
- 2.0 Premium High Speed
- Max Resolution
- 4K (3840x2160) @60Hz
- Bandwidth
- 18 Gbps
- Shielding
- Triple (Foil + Braid)
- Conductor Material
- Oxygen-Free Copper (OFC)
- Wire Gauge
- 30 AWG
- Jacket Material
- PVC
- Outer Diameter
- 6
- Contacts
- 24K Gold-plated
- Supported Features
- ARC, CEC, HDCP 2.2, Ethernet, HDR, 4:4:4
- Colour
- Black
- Application
- NVR-to-monitor extensions
Technical Specifications
Frequently Asked Questions
What resolution does this HDMI cable support?
It's rated High Speed HDMI 2.0 for 4K@60Hz (3840x2160) at 4:4:4 chroma, and is backward compatible with HDMI 1.4 for 1080p@120Hz NVR outputs.
Does it carry Ethernet and audio return?
Yes — it supports the Ethernet channel, ARC, CEC, HDCP 2.2 and Deep Colour.
What's the cable made from?
30AWG OFC copper conductors with triple shielding (foil and braid) and 24K gold-plated pins, in a 6mm OD PVC jacket with moulded strain relief.
How long is the cable and what connector type does it use?
It's 3 metres long with HDMI-A male connectors at both ends.
