Product Description

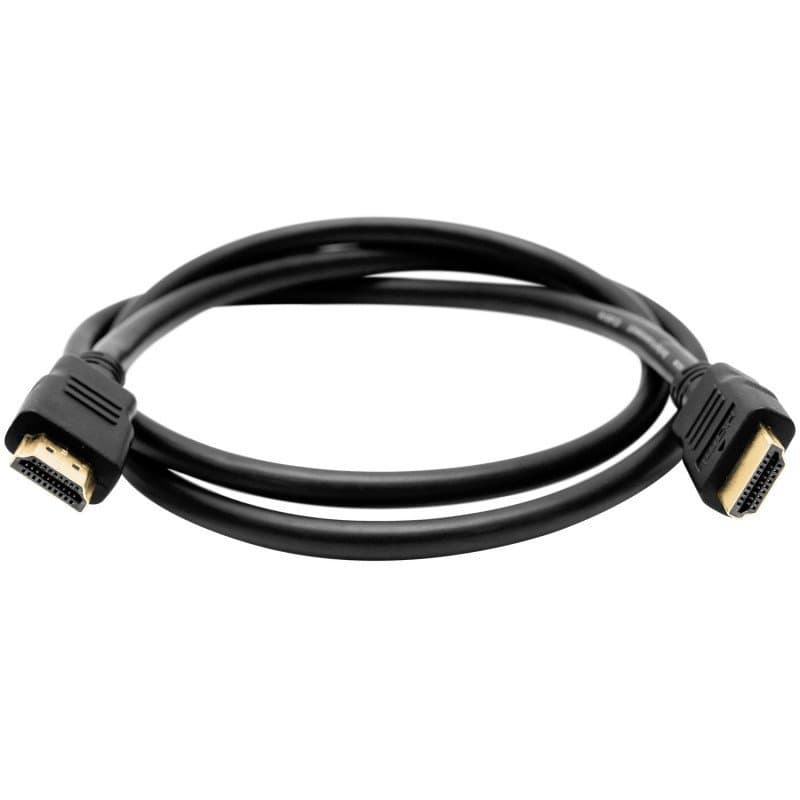

A 10 metre HDMI Type A male-to-male lead for jobs where the display sits well away from the recorder — wall-mounted monitors, video walls or a projector at the far end of a control room.
Key specs
- HDMI 2.0, High Speed certified — 18Gbps bandwidth, supports 4K@60Hz (3840x2160)
- 24-28AWG OFC copper conductors with triple shielding (foil + double braid) and gold-plated contacts
- Nylon braided or PVC jacket variants; ferrite cores fitted to reduce EMI near CCTV power supplies and rack wiring
- Carries ARC, CEC and an Ethernet channel, plus HDR, Deep Colour, 3D and HDCP 2.2
- Also suits 1080p@120Hz and multi-channel NVR HDMI outputs
- Backward compatible with HDMI 1.4 sources
- Overmoulded strain relief for rack panel routing and repeated plug/unplug cycles
- Active or passive construction depending on model variant
Where it fits
This length covers rack-to-desktop or wall-to-console runs without an active booster in most rack layouts, useful when an NVR or DVR sits in a comms cupboard and the viewing monitor is on the far wall. The ferrite cores and triple shielding are worth checking on the spec sheet if the run passes close to PoE switches or DC power leads, since that's a common source of interference on long cable paths. For multi-screen setups, CEC and the Ethernet channel let you sync power and control across displays without extra wiring.
Passive HDMI 2.0 cables of this type cover most NVR-to-monitor jobs; if a job needs 8K or 48Gbps bandwidth, that calls for a different, HDMI 2.1-rated cable.
Specifications
- Product Type
- High Speed HDMI Cable
- Connector Type B

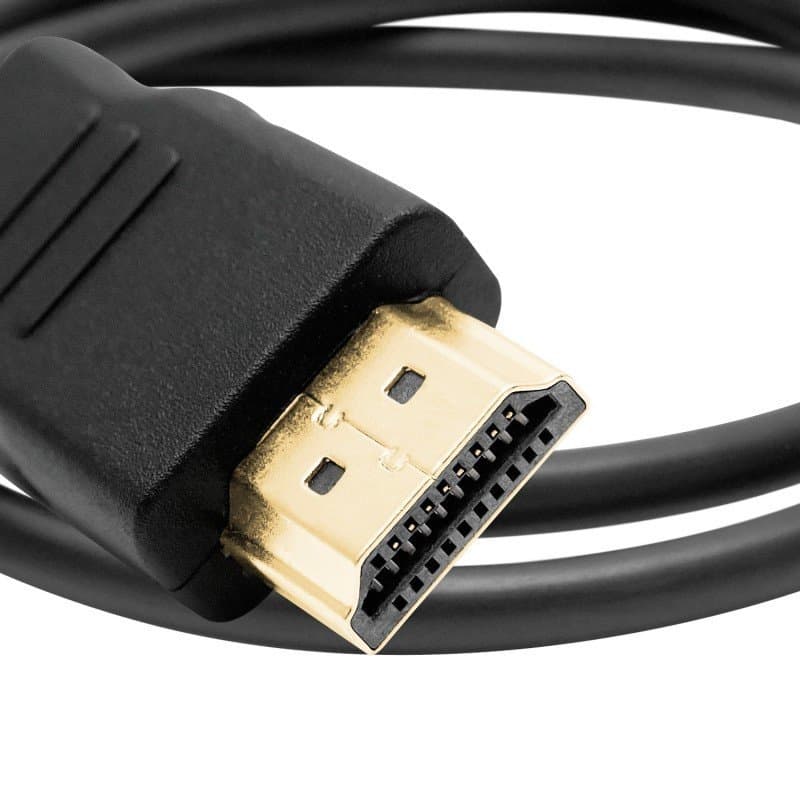

- HDMI Type A Male (19-pin)
- Cable Length
- 10
- HDMI Version
- 2.0 High Speed
- Max Resolution
- 4K (3840x2160) @60Hz
- Bandwidth
- 18 Gbps
- Shielding
- Triple (Foil + Double Braid)
- Conductor Material
- Oxygen-Free Copper (OFC)
- Wire Gauge
- 24-28 AWG
- Jacket Material
- PVC / Nylon Braid
- Outer Diameter
- 7-10
Frequently Asked Questions
Does this cable support 4K at 60Hz over the full 10m length?
Yes — it's High Speed HDMI 2.0 certified with 18Gbps bandwidth, which supports 4K@60Hz (3840x2160) at this length.
Is it compatible with older HDMI 1.4 devices?
Yes, it works with HDMI 1.4 sources too.
Is it suitable for routing through rack panels near CCTV power supplies?
It has overmoulded strain relief for rack panel routing, and ferrite cores are fitted to reduce EMI near CCTV power supplies and rack wiring.
Does it carry audio return or Ethernet, or just video?
It carries ARC, CEC and an Ethernet channel alongside the video signal, plus HDR, Deep Colour, 3D and HDCP 2.2 support.
