Product Description

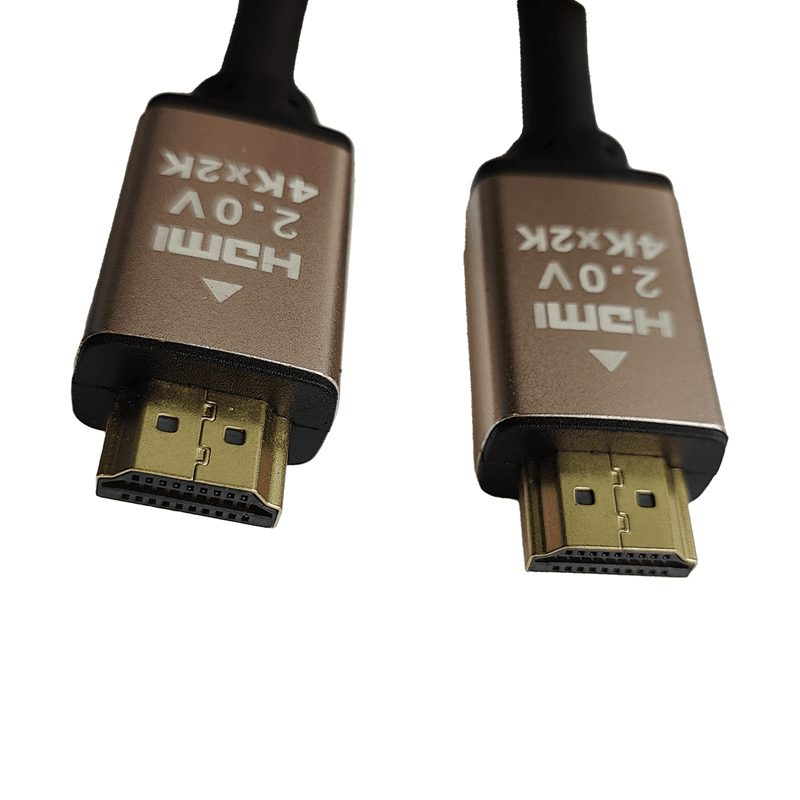

A 1m HDMI Type A male-to-male cable built for the short hop between an NVR and a local monitor inside a rack or on a desk. HDMI 2.0 Premium High Speed certified, it carries 18Gbps and handles 4K@60Hz (3840x2160) at full 4:4:4 chroma with HDR — enough headroom for multi-camera mosaic feeds without banding or dropped frames.
Build and why it matters on a rack
- 30-34AWG OFC copper conductors with triple shielding (foil + braid) resist crosstalk from nearby Cat6 bundles, PoE injectors and CCTV PSUs — a real concern in dense equipment racks.
- Gold-plated pins, rated for 10,000+ mating cycles, keep contact quality consistent through repeated monitor swaps during commissioning and testing.
- PVC jacket, 5-6mm OD, stays flexible enough to route alongside DC pigtails without fighting the cable arm.
- Backward compatible with HDMI 1.4 (1080p@120Hz), so it drops into hybrid rigs running older DVRs or HD converters alongside 4K recorders.
- Supports ARC, CEC, HDCP 2.2, Ethernet channel and Deep Colour — useful where the display also needs control or audio return.
Where it fits
At 1m, it's sized for intra-rack or desk-adjacent runs — NVR HDMI out to a local monitor — rather than long cable pulls, which keeps the run tidy and avoids the signal loss risk of stretching a single length too far. A sensible starter length to keep in stock alongside power leads and structured cabling when commissioning a surveillance AV rack.
Specifications
- Product Type
- 4K High Speed HDMI Cable
- Connector Type A
- HDMI Type A Male (19-pin)
- Connector Type B
- HDMI Type A Male (19-pin)
- Cable Length
- 1
- HDMI Version
- 2.0 Premium High Speed
- Max Resolution
- 4K (3840x2160) @60Hz
- Bandwidth
- 18 Gbps
- Shielding
- Triple (Foil + Braid)
- Conductor Material
- Oxygen-Free Copper (OFC)
- Wire Gauge
- 30-34 AWG
- Jacket Material
- PVC
- Outer Diameter
- 5-6
- Contacts
- Gold-plated
- Supported Features
- ARC, CEC, HDCP 2.2, Ethernet, HDR
- Colour
- Black
Technical Specifications
Frequently Asked Questions
Which resolution and refresh rate can this cable handle?
It supports 4K (3840x2160) at 60Hz with full 4:4:4 chroma and HDR, running on an 18Gbps HDMI 2.0 Premium High Speed connection.
Will it work with older 1080p equipment?
Yes, it's backward compatible with HDMI 1.4, so it supports 1080p@120Hz for hybrid setups mixing older DVRs with newer 4K recorders.
Is it suitable for use in a busy equipment rack?
Yes — the triple-shielded 30-34AWG OFC copper conductors are designed to resist crosstalk from Cat6 bundles, PoE injectors and CCTV PSUs nearby.
How durable are the connectors?
The gold-plated pins are tested for over 10,000 mating cycles, so repeated monitor swaps during testing or commissioning shouldn't degrade the connection.
