Product Description
A 5m HDMI 2.0 lead built for the run between a rack-mounted NVR and a wall-mounted monitor — the standard distance in most control rooms and comms cupboards.
Why 5m matters
Most NVR-to-display runs in a rack room or office reception sit within this length, so it bridges equipment racks to wall consoles without needing an active booster or extender.
Key specs
- Certified HDMI 2.0 Premium High Speed, offering 18Gbps of bandwidth.
- 4K@60Hz (3840x2160), 4:4:4 chroma, HDR support
- 26-28AWG OFC copper with double foil-plus-braid shielding and gold-plated contacts
- PVC jacket, 7-8mm OD, moulded strain relief, 40mm bend radius
- Supports ARC, CEC, HDCP 2.2 and Ethernet channel.
- Backward compatible with HDMI 1.4 (1080p@60Hz)
- RoHS compliant
Where it fits
The shielding is relevant where the cable shares tray or trunking space with Cat6 runs, PoE injectors and rack PSUs — common in installations combining an NVR, a network switch and DC power leads in one enclosure. Ethernet channel support means it can also carry IP/RS232 control signalling, and CEC/ARC are useful where a monitor needs to sit in an AV matrix or multi-screen setup rather than run standalone.
HDMI 1.4 backward compatibility keeps it usable if a site still runs older DVR hardware alongside newer 4K recorders during a phased upgrade.
Specifications
- Product Type
- 4K High Speed HDMI Cable

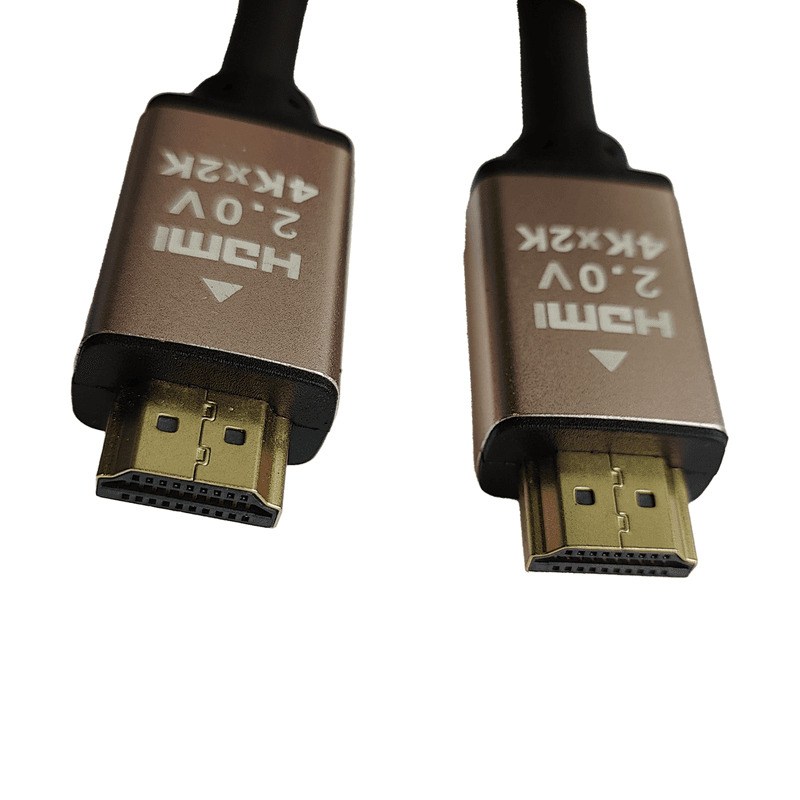

- Connector Type A
- HDMI Type A Male (19-pin)
- Connector Type B
- HDMI Type A Male (19-pin)
- Cable Length
- 5
- HDMI Version
- 2.0 Premium High Speed
- Max Resolution
- 4K (3840x2160) @60Hz
- Bandwidth
- 18 Gbps
- Shielding
- Double Foil + Braid
- Conductor Material
- Oxygen-Free Copper (OFC)
- Jacket Material
- PVC
- Outer Diameter
- 7-8
- Supported Features
- ARC, CEC, HDCP 2.2, Ethernet, HDR
- Bend Radius
- 40
- Colour
- Black
Technical Specifications
Frequently Asked Questions
Will this cable run a 4K NVR output at full resolution?
Yes — it is HDMI 2.0 Premium High Speed certified for 4K@60Hz at 3840x2160 with 4:4:4 chroma and 18Gbps bandwidth.
Is 5m long enough to go from a rack to a wall-mounted monitor without a booster?
Yes, 5m is within the HDMI 2.0 passive limit, so it covers a typical rack-to-wall-console run without an active extender.
Does it work with older, non-4K DVRs?
Yes — it is backward compatible with HDMI 1.4, so it will run 1080p@60Hz on legacy DVR hardware.
Will it pick up interference if routed near Cat6 and PoE cabling in a rack?
The cable uses double foil-plus-braid shielding around 26-28AWG OFC copper conductors, intended to maintain signal margins near rack Ethernet and power cabling.
