Product Description

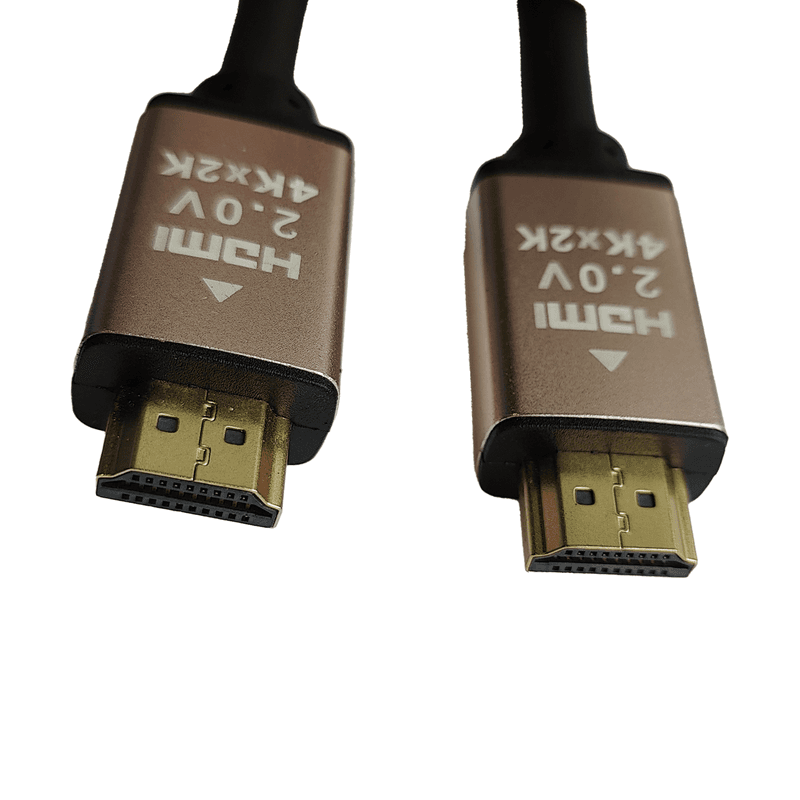

A 1.5m HDMI-A male-to-male cable sized for NVR-to-monitor connections inside a rack or control desk, where a short, well-shielded lead matters more than reach.
Why this length and build
Short runs avoid slack in rack cabinets and reduce the interference a longer cable would pick up from PSUs and switching gear nearby. Triple shielding (foil plus braid) and gold-plated contacts keep the signal clean over that distance, which is what actually causes dropped or flickering HDMI feeds on site — not the cable length itself.
Key specs
- Certified HDMI 2.0 Premium High Speed, offering 18Gbps of bandwidth.
- Supports 4K@60Hz (3840x2160) with 4:4:4 chroma and HDR.
- 30-34AWG OFC copper conductors, triple shielding, gold-plated contacts
- Supports HDCP 2.2, ARC, CEC and Ethernet channel
- Features a PVC outer sheath measuring 4.5-6mm OD, with a moulded strain relief.
- Backward compatible with HDMI 1.4, running 1080p@120Hz on older sources
- Complies with RoHS and is rated for more than 10,000 mating cycles.
Where it fits on a job
Use it to connect an NVR's HDMI output directly to a UHD monitor in a control room, comms cabinet or reception desk — anywhere the recorder and screen sit within arm's reach of each other. The 18Gbps bandwidth gives headroom for full-chroma 4K@60Hz rather than a downscaled or chroma-subsampled image, and HDCP 2.2 support avoids handshake issues some older leads have with newer NVRs and displays. Ethernet channel and ARC/CEC support are there if the monitor and source support them, though not every installation will use those features.
Specifications
- Product Type
- 4K High Speed HDMI Cable
- Connector Type A
- HDMI Type A Male (19-pin)
- Cable Length
- 1.5
- HDMI Version
- 2.0 Premium High Speed
- Max Resolution
- 4K (3840x2160) @60Hz
- Bandwidth
- 18 Gbps
- Shielding
- Triple (Foil + Braid)
- Conductor Material
- Oxygen-Free Copper (OFC)
- Wire Gauge
- 30-34 AWG
- Diameter
- 4.5-6
- Contacts
- Gold-plated
- Supported Features
- ARC, CEC, HDCP 2.2, Ethernet, HDR
- Colour
- Black
Frequently Asked Questions
Will this cable carry a full 4K image from an NVR to a monitor without dropping to a lower resolution?
Yes — it's rated at 18Gbps, which gives enough bandwidth for 4K@60Hz at full 4:4:4 chroma sampling rather than a subsampled or lower-res fallback.
Is 1.5m long enough for a rack-to-monitor connection?
It's designed for short NVR-to-monitor runs within a rack or control desk; the short length also helps avoid picking up interference from nearby PSUs and switching gear.
Does it work with older 1080p equipment as well as 4K sources?
Yes, it's backward compatible with HDMI 1.4 and will run 1080p@120Hz on legacy sources.
Does the cable support HDCP 2.2 for compatibility with modern NVRs?
Yes, HDCP 2.2 is supported, along with ARC, CEC and the Ethernet channel.
