Product Description

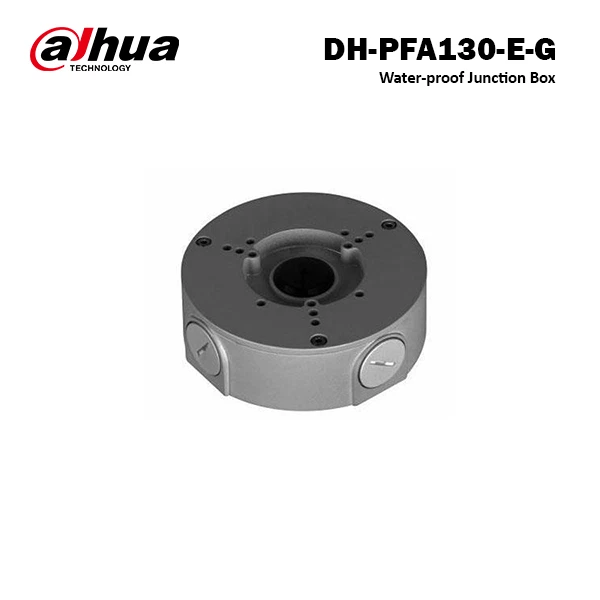

The Dahua PFA130-E Water-proof Junction Box (SKU PFA130-E-G) is a round aluminium alloy enclosure that holds a compatible CCTV camera and covers its cable connections at the mounting point.
Where it earns its place on a job
On a site that mixes indoor and outdoor camera positions, such as a retail unit, a warehouse, an office entrance or the communal areas of a residential block, one box type can cover both. It is IP66 rated for protection against dust and powerful water jets, so the connections behind the camera stay enclosed and the wiring is hidden.
Specification for your schedule
- Brand and model: Dahua PFA130-E
- Material and finish: aluminium alloy, white
- Ingress protection: IP66
- Dimensions: 124.3 mm diameter, 41 mm deep
- Maximum load: 3 kg
- Cable entry: G3/4 thread
- Operating temperature: −40°C to +60°C
Before you specify
Check the camera model against Dahua's accessory selection guide, and confirm the camera's weight is within the 3 kg limit. The G3/4 entry will also need to suit the conduit or gland planned for the run.
Specifications
- NVR Compatibility
- Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any other NVR that supports ONVIF.
- Casing Material
- Aluminum alloy
- Product Dimensions
- Φ124.3 mm × 41.0 mm (Φ4.89" × 1.61")
- Appearance Color
- White
- Packaging Dimensions
- 146 mm × 65 mm × 147 mm (5.75" × 2.56" × 5.79") (L × W × H)
Frequently Asked Questions
What IP rating does the Dahua PFA130-E have?
It is rated IP66, which covers protection against dust and powerful water jets.
How much weight can the PFA130-E carry?
The maximum load is 3 kg.
Is the PFA130-E suitable for indoor and outdoor use?
Yes, it is suited to both indoor and outdoor surveillance installations, and operates from −40°C to +60°C.
What size is the cable entry?
The cable entry has a G3/4 thread. The box measures 124.3 mm in diameter and 41 mm deep.
