Product Description

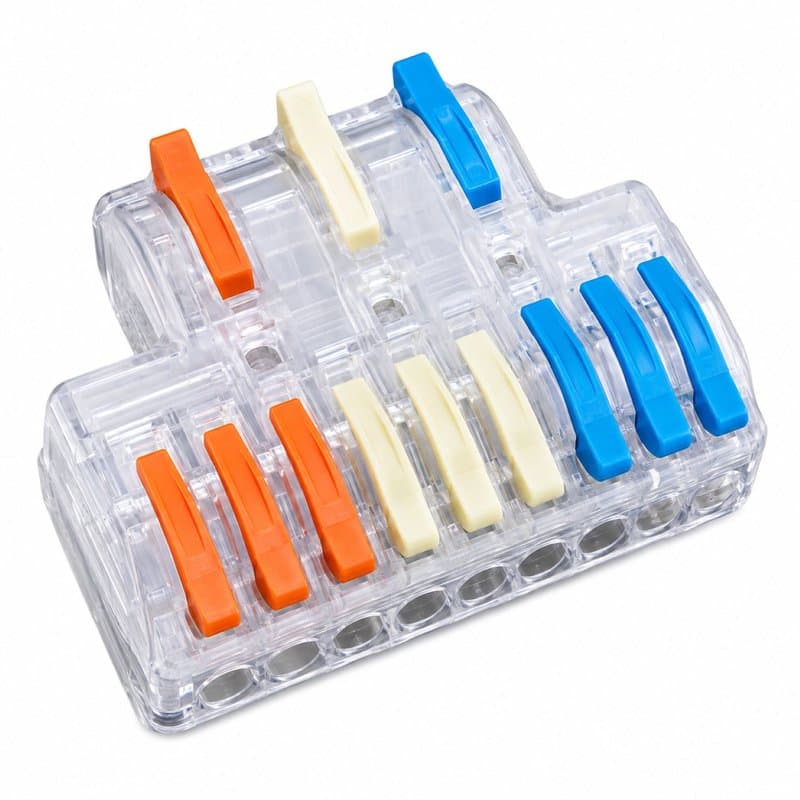

SPL-3-9-CL Lever Wire Connector — 3 In, 9 Out
A single supply feeds up to nine outputs from this connector — useful wherever a CCTV or electrical first-fix needs one power or lighting circuit split across multiple runs from one junction box.
Why installers pick this over a chocolate block
- 3 input / 9 output terminals: one incoming conductor set distributes to nine, cutting the number of joints needed in a distribution box.
- Tool-free lever locking: lift the lever, insert the stripped conductor, press down — no screwdriver or crimp tool needed on site.
- Transparent housing: lets you check by eye that each conductor is fully inserted and seated before closing up the box, which helps at snagging/inspection stage.
- Reusable: levers release the conductor cleanly, so a connector can be reworked if a circuit needs changing without cutting back cable.
- Rated for solid, stranded and flexible conductors: one connector type covers mixed cable on the same job rather than stocking separate parts.
Where it fits on a job
Suited to lighting circuits, junction boxes, control panels and general electrical distribution wiring — including the power side of a CCTV install where one PSU output needs splitting to several camera runs. The compact body is sized to fit inside standard junction boxes without crowding the enclosure.
Pair with insulated junction boxes rated for the circuit and check conductor CSA against the connector's terminal capacity before specifying for a job.
Specifications
- Model
- SPL-3-9-3
- Product Type
- Lever wire connector / splicing terminal
- Output Terminals
- 9
Frequently Asked Questions
How many conductors can the SPL-3-9-CL join?
It has 3 input terminals and 9 output terminals, so one supply can be split across up to nine outgoing conductors from a single connector.
Do I need a tool to fit the SPL-3-9-CL?
No — it uses a tool-free lever locking system: lift the lever, insert the stripped conductor, then press the lever down to lock it in place.
Can this connector be reused after wiring changes?
Yes, it's a reusable splicing connector, so conductors can be released and re-terminated if a circuit needs rewiring.
What conductor types does it accept?
It's suitable for solid, stranded and flexible conductors, so it can be used across mixed cable types on the same installation.
