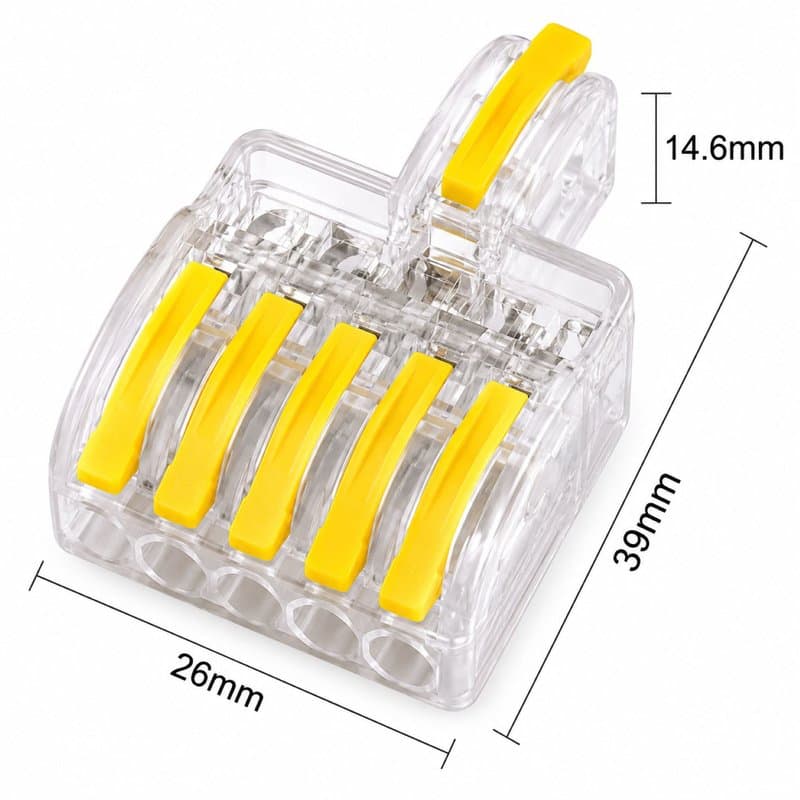

SPL-1-5-CL Clear Lever Wire Connector 1 In 5 Out Splicing Terminal

The SPL-1-5-CL is a 1-in, 5-out lever wire connector for splitting a single supply or signal feed to five conductors inside a CCTV or general electrical installation.

On a camera install, this is the part that lives in the back box or junction box where a single power feed needs to reach several devices — for example splitting a 12V DC run out to multiple cameras, or distributing a lighting/PIR feed across a panel. Because the housing is transparent, installers can confirm each conductor is fully inserted before closing up the enclosure, which matters when the connection is going behind a soffit or ceiling void and won't be checked again.

Why installers spec this on a job

• 1 input / 5 output terminals from a single connector, useful for star-wiring a feed to multiple loads.
• Lever-lock clamping — no screwdriver, crimp tool or solder needed; lift, insert, press.
• Reusable if a circuit gets re-run or a camera position changes during snagging.
• Transparent housing for a visual check of wire insertion during install and fault-finding later.
• Rated for solid, stranded and flexible conductors, so it suits mixed cable types on the same job.
• Small enough to fit inside junction boxes, light fittings, cabinets and control panels.

Keep a few in the van alongside standard 2- and 3-way connectors for jobs where one feed needs splitting more than once, such as multi-camera runs from a single PSU tap.
