Product Description

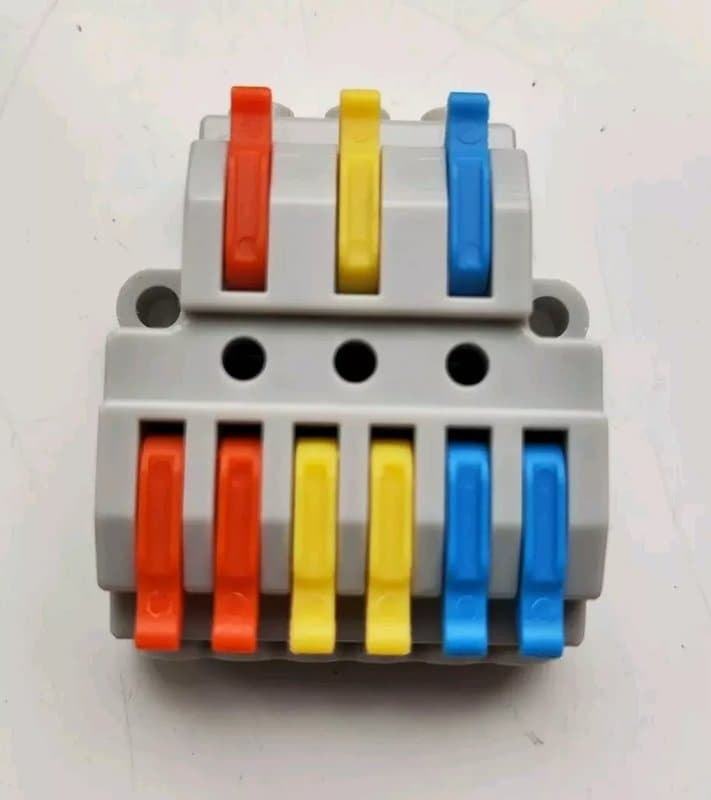

The SPL-3-6 is a 9-way lever wire connector — 3 inputs, 6 outputs — for splitting one supply cable into six separate feeds from a single terminal block.
Where it fits on an install
On CCTV and access control jobs this connector earns its place inside junction boxes where one incoming power or signal cable needs to feed several devices at once — a run of PIRs, a cluster of cameras sharing a supply, or a lighting circuit branching to multiple fittings. It's a wiring accessory rather than a camera part, but it's the kind of thing an installer reaches for on nearly every multi-device job.
How it works
Each port has its own coloured lever. Lift it, insert the stripped conductor, press the lever back down — no screwdriver, no crimp tool. Because the connection is reusable, you can lift the lever again to release a wire if a circuit needs correcting or a run gets modified later.
Key specs
- 3 input terminals, 6 output terminals (9-way total)
- Tool-free lever-lock mechanism
- Accepts solid, stranded and flexible conductors
- Flame-retardant insulated housing with metal contacts
- Reusable — levers release wires for rework
- Compact enough for junction boxes, lighting fixtures, enclosures and control panels
Keep a few in the van alongside standard cable and glands — they're a quick fix for branching supply runs without carrying a crimp tool on site.
Specifications
- Model
- SPL-3-6-3
- Product Type
- Lever wire connector / splicing terminal
- Input Terminals
- 3
- Output Terminals
- 6
Frequently Asked Questions
What is the maximum number of wires the SPL-3-6 can link?
It has 3 input terminals and 6 output terminals, so it splits one incoming supply into up to six separate outgoing wires.
Is a crimp tool or screwdriver required for fitting it?
No — it uses a tool-free lever-lock mechanism; you lift the coloured lever, insert the stripped wire and press the lever down to secure it.
If you need to rewire a circuit, is it possible to reuse it?
Yes, the connector is reusable — lifting the lever again releases the conductor so you can make changes.
What types of conductor does it accept?
It works with solid, stranded and flexible conductors alike.
