Product Description

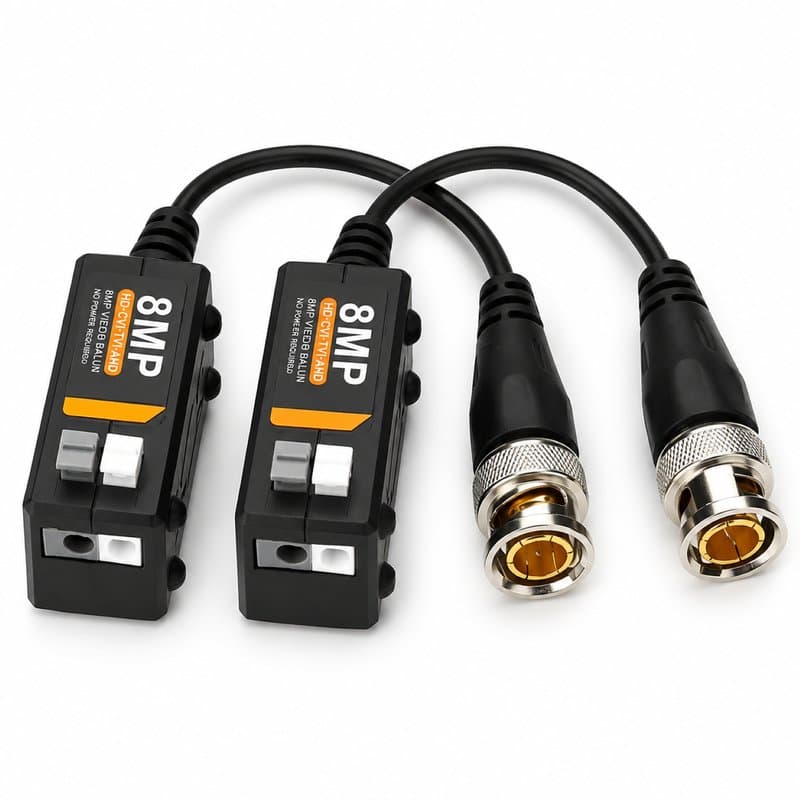

A passive BNC video balun for running HD CCTV signals over Cat5e or Cat6 network cable instead of coax. It suits trade installs where structured cabling is already in place or preferred over pulling new coax runs.
Where it fits
- Retail and office fit-outs with existing data cabling infrastructure, where reusing Cat5e/Cat6 avoids a separate coax pull.
- Warehouse and industrial installs needing camera runs across large floor plates via network cable routes.
- Residential blocks and multi-camera upgrades where coax isn't already in place but network cabling is.
Key specs
- Supports up to 8MP 4K resolution.
- Compatible with HD-TVI, AHD, CVI and analog CCTV formats.
- BNC male connector for direct camera or DVR connection.
- Gold plated connector plate for stable contact.
- Passive design — transmits over Cat5e or Cat6 UTP cable, no external power required.
Deployment notes
Passive baluns are installed in pairs — one at the camera end, one at the DVR or NVR end — so plan cable runs and matching baluns together at spec stage. Because it's passive, it draws no power from the run itself, which simplifies procurement on jobs where power budgeting is already tight from cameras and other active equipment.
Confirm the DVR or recorder input supports the same HD-over-coax format and resolution as the camera before specifying this balun for a multi-camera job, since compatibility runs end-to-end across the signal chain.
Specifications
- Resolution
- 8MP
- Connector Type
- BNC
Frequently Asked Questions
Does this balun need external power?
No — it's a passive device, so it doesn't require an external power supply.
What CCTV formats does it support?
It supports HD-TVI, AHD, CVI and conventional analog video signals, up to 8MP 4K resolution.
Which cable replaces coax in this setup?
It's designed for transmission over Cat5e or Cat6 UTP network cable.
How is it connected to a camera or DVR?
Via a BNC male connector with a gold plated connector plate for stable signal contact.
