Product Description

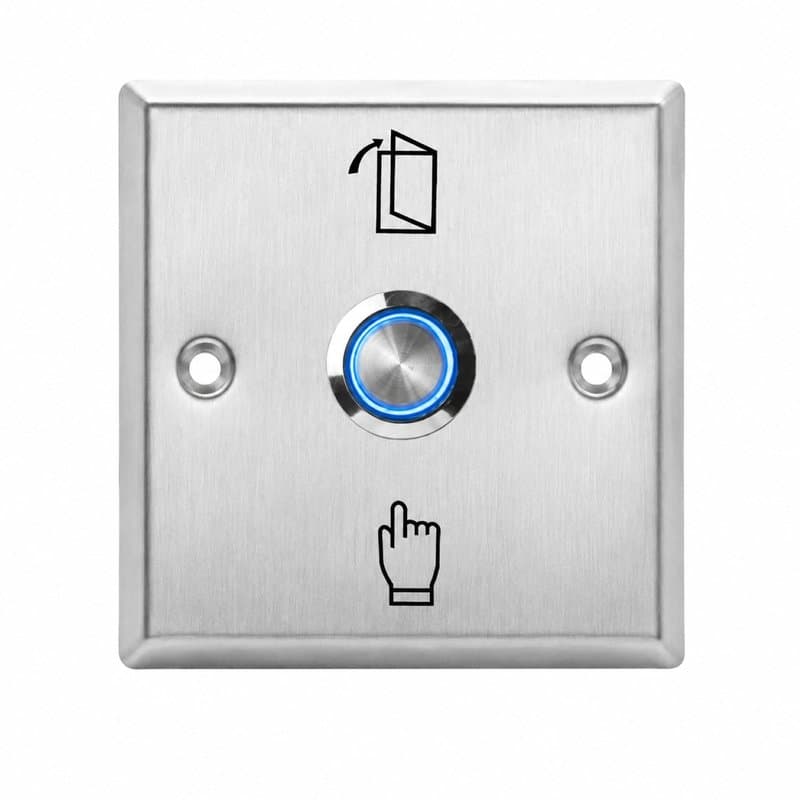

The ACM-K15A is a stainless steel, IP67-rated exit push button for releasing electric or magnetic locks in access control systems. Pressing it sends a momentary contact signal to the connected access controller, which then releases the door.
Where it fits
This is an exit-side accessory, not a standalone system — it needs pairing with an access controller and an electric strike or maglock. Typical jobs include:
- Fire exits and staff exits in retail units and offices, where a clearly marked release is required
- External gates, warehouse doors and parking barrier points exposed to rain or washdown
- Residential block communal doors and industrial facility entrances needing a durable, vandal-resistant fitting
Why the build matters on site
- IP67 rating: withstands moisture and dust ingress, so it can go on an external wall or gate rather than being limited to a sheltered porch
- Stainless steel housing: resists the knocks and repeated use typical of public or commercial doorways, and stands up to outdoor weathering better than plastic alternatives
- Momentary contact switch: gives a clean, single-press signal to the controller rather than a maintained closure
- Surface mount: fixes to a wall, door frame or standard mounting box near the exit point, without cutting into the door itself
- Marked "EXIT" label: helps building users find the release quickly, which matters for both routine use and emergency egress
Specify it alongside the site's existing controller and lock hardware to confirm electrical compatibility before ordering.
Specifications
- Product Type
- Door Release Exit Push Button
- Model
- ACM-K15A
- SKU
- ACM-K15A-DOOR-EXIT
- Material
- Zinc alloy
- Dimensions
- 53 × 53 × 28 mm
- Contact Rating
- Maximum 3A at 36V DC
Frequently Asked Questions
What does the ACM-K15A actually do?
It's a momentary contact push button that signals an access controller to release an electric or magnetic lock, allowing authorised exit from a controlled area.
Can it be fitted outdoors?
Yes — it carries an IP67 rating for weather resistance, so it's suited to external doors, gates and other exposed installation points as well as indoor use.
Does it work with any access control system?
It's compatible with most electric strikes, magnetic locks and access control panels, but check it matches your specific controller's input before installing.
How is it fitted?
It's a surface mount unit, fixed to a wall, door frame or standard mounting box near the exit point — no door-leaf cutting required.
