Product Description

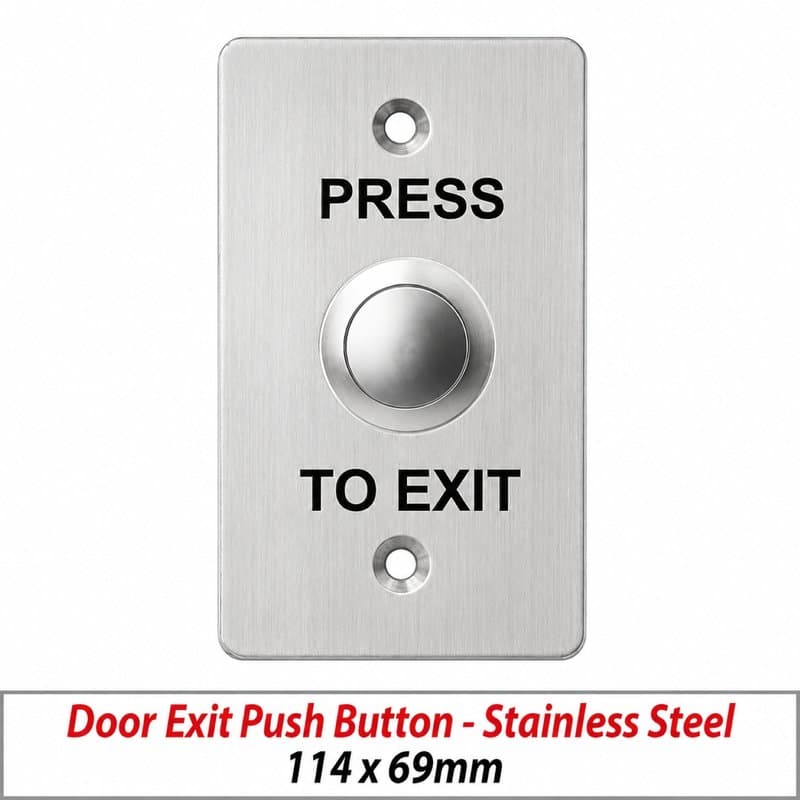

The ACM-K14B is a stainless steel exit push button for access-controlled doors. It sends a momentary contact signal to a door controller or electric lock, releasing the door when a user presses it to leave a secured area.
Where it fits on a job
This is a component for access control installs rather than a standalone product. Typical deployments pair it with an electric strike, magnetic lock or a full door controller/panel, mounted near the exit point it serves.
Build and mounting
The faceplate measures approximately 114 × 69 mm and is finished in stainless steel, described by the manufacturer as vandal-resistant. It's designed for flush mounting on a wall back box or an access control mounting plate, so check back box compatibility before ordering for a given door.
Suitable settings
Because the plate is rated for indoor and outdoor installation, it suits a range of exit points:
- Office and commercial building entrances
- Warehouse and storage facility exits
- Residential block communal doors
- Secure facility controlled exit points
Specification decisions
Confirm the switch type matches your controller's input before specifying — this unit operates as a momentary contact switch, which suits most electric strike and maglock release circuits used in door access setups.
Key specs
- Model: ACM-K14B
- Plate size: approx. 114 × 69 mm
- Switch type: momentary contact
- Material: stainless steel, vandal-resistant
- Installation: indoor and outdoor
Specifications
- Product Type
- Door Exit Push Button
- Model
- ACM-K14B
- SKU
- ACM-K14B-DOOR-EXIT
- Material
- Stainless steel
- Operation
- Manual push-button activation
- Function
- Sends a door release signal to the connected controller
Frequently Asked Questions
Which size back box is required for the ACM-K14B?
The plate measures approximately 114 × 69 mm and is designed for flush mounting on a wall back box or access control mounting plate — check your existing back box dimensions match before ordering.
Is the ACM-K14B suitable for outdoor doors?
It can be installed both indoors and outdoors.
What type of switch does it use?
It uses a momentary contact switch, sending a signal to the connected access control panel or door controller when pressed.
What can the ACM-K14B connect to?
It's compatible with electric locks and access control systems, including electric strikes, magnetic locks and door controllers.
