Product Description

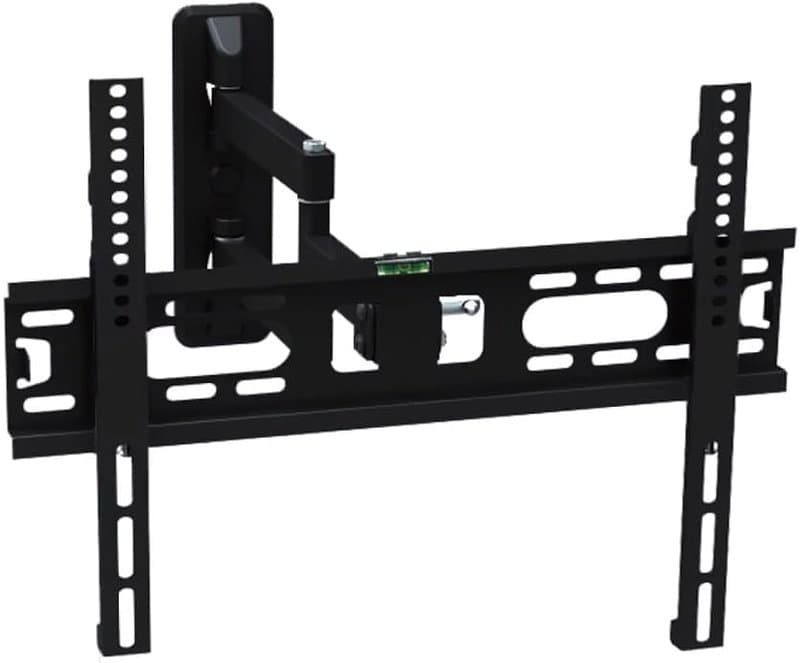

A swivel wall bracket for the monitor sitting beside your NVR or DVR — this isn't a camera mount, it's the fixing for the screen showing live feeds or playback in a control room, reception point, or back-office rack area.
It fits displays from 26" to 55", with a maximum VESA hole pattern of 400x400mm and a rated load capacity of 35kg. The 180° swivel lets the panel turn off-axis, which matters where a viewing position sits to the side of the wall rather than facing it square-on — a reception desk, a corner office, or a monitor bank viewed from more than one angle.
Before ordering, check
- VESA pattern: measure the four rear mounting holes in mm, width x height. Anything up to 400x400 fits; beyond that, this bracket won't line up.
- Screen weight: must sit at or under 35kg.
- Wall clearance: the arm adjusts between 75mm and 390mm from the wall, giving room to clear a recessed socket, existing conduit, or a shelf-mounted recorder without re-routing cable first.
Where a CCTV monitor is being wall-mounted alongside an NVR/DVR install, this bracket handles the display-side fixing — camera positioning and night-vision performance are separate considerations entirely.
Specifications
- Product Type
- TV Bracket
- Fit for TV size
- 26”-55”
Technical Specifications
Frequently Asked Questions
What size screens does this bracket fit?
Displays from 26 inches up to 55 inches, provided the rear VESA hole pattern is no larger than 400x400mm.
How much weight can it hold?
Up to 35kg, so check your screen's actual weight against this before ordering.
How far can the screen sit from the wall?
The arm adjusts between 75mm and 390mm, giving clearance for sockets, conduit, or a nearby NVR shelf.
Would this work for fitting a CCTV camera?
No — this is a display bracket for a monitor or TV, not a camera mount.
