Product Description
What it's for
The PCT-102 is a 2-port push wire connector rated to 250V, used to join or extend conductors inline within a junction box, camera housing or electrical enclosure — no crimping, no screwdriver.
On a typical install this is the part that sits inside a wall-mounted camera back box or a ceiling void junction, taking a CCTV power feed from one cable run into the next without a full termination panel nearby. It suits retail fit-outs, warehouse camera runs, office refurbishments and residential block installations where cabling has to be joined mid-run rather than at a distribution point.
Key specs
- Ports: 2 independent push-wire terminations
- Voltage rating: up to 250V, covering low-voltage CCTV/alarm feeds and mains lighting or control circuits
- Conductors: solid and stranded copper
- Termination: push-in spring clamp, tool-free

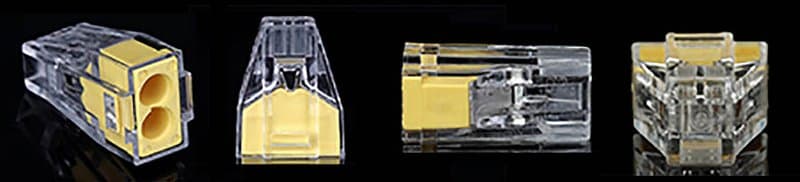

- Housing: transparent insulated body, so installers can visually confirm the conductor is fully inserted
- Form factor: compact inline design sized for junction boxes, camera housings, network cabinets and electrical distribution enclosures
Selecting for a job
Spec this where speed and reliable contact matter more than a screw terminal — first-fix CCTV power runs, alarm wiring extensions, and lighting or control circuits sharing the same containment. The transparent housing is a practical check for anyone signing off an install before the enclosure lid goes on.
Technical Specifications
Frequently Asked Questions
What conductors does the PCT-102 accept?
Both solid and stranded copper conductors, as used in typical CCTV power, alarm and lighting cabling.
Does it need a crimping or screwdriver tool to fit?
No tools are needed, as it uses push-in spring clamps that accept conductors directly.
Can the PCT-102 be used on mains as well as low-voltage circuits?
Yes, it is rated up to 250V, which covers both low-voltage CCTV/alarm wiring and mains lighting or control circuits.
What is the maximum number of conductors a single PCT-102 can join?
It has 2 independent ports, so it is designed for joining or extending conductors between two connection points.
