Product Description

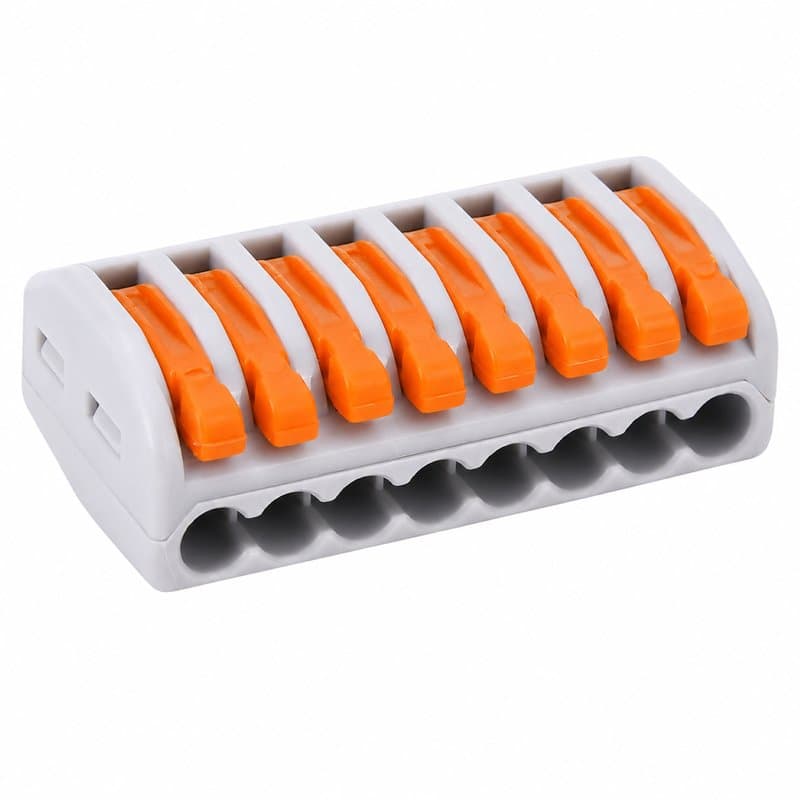

The SPL-8 is an 8-port lever connector for joining CCTV power and low-voltage conductors without crimping tools. It solves the common multi-camera job: splitting one 12V DC or 24V DC feed from a centralised power supply out to several cameras from a single junction point.
Where it fits on a job
On retail, warehouse, and office installs, the SPL-8 usually sits inside a wall cabinet, camera junction box, or rack enclosure, taking a feed from the main PSU and branching it to individual camera runs. It's equally suited to LED driver wiring and control panel terminations where several low-voltage conductors need a shared, tidy connection point.
Why installers pick a lever connector over crimping
- Tool-free termination — conductors are inserted and released via the lever clamp, no crimping tool or screwdriver needed, which speeds up multi-drop power runs
- 8 independent ports per block, so one connector can serve several cameras or devices from a single supply
- Solid and stranded copper compatible, covering the conductor types found in CCTV power cable, alarm cable, and low-voltage control wiring
- Compact footprint for tight junction boxes and enclosures where cable management matters
- Insulated housing for safe handling during termination and ongoing operation
Spec it alongside centralised PSUs feeding multiple cameras, or wherever a job calls for clean, repeatable low-voltage splicing rather than individual crimped joints.
Specifications
- Voltage
- 12V
- Colour
- Grey
Technical Specifications
Frequently Asked Questions
How many conductors can the SPL-8 connect?
It has 8 independent lever ports, so up to eight conductors can be joined at a single connection point.
Does it work with stranded CCTV power cable as well as solid core?
Yes, the SPL-8 is compatible with both solid and stranded copper conductors typically used in CCTV power and low-voltage control wiring.
Is a crimping tool needed to finish the ends?
No — the lever clamp design is tool-free, so conductors are inserted or released by hand without crimping or screwdriver work.
What voltages is the SPL-8 rated for?
It's suitable for 12V DC, 24V DC, and general low-voltage distribution such as CCTV power supplies and LED drivers.
