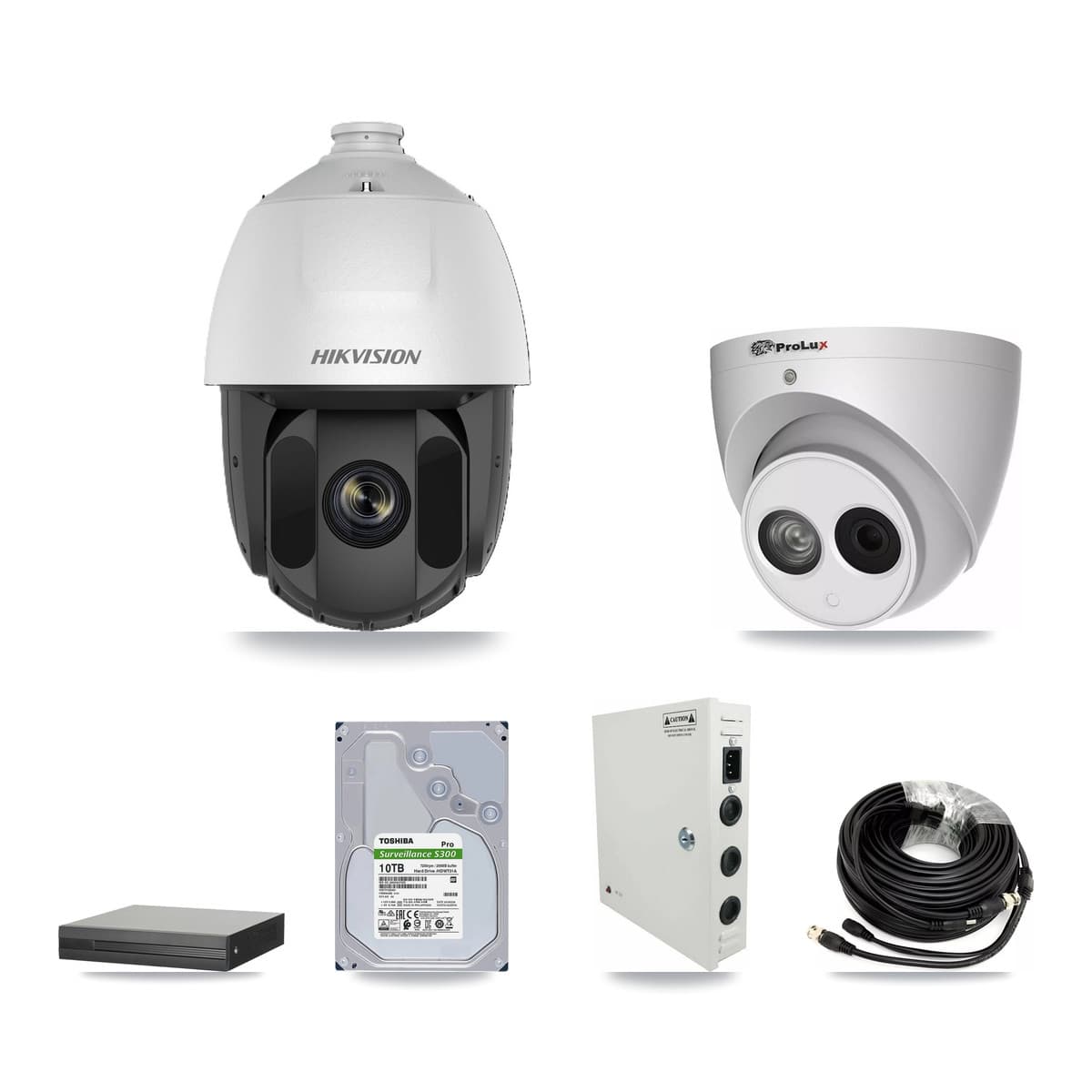

Hikvision & Prolux 16-Channel 2MP – 4MP CCTV Kit — 8 2MP PTZ + 4 4MP Turret Cameras + 10TB Recording
SKU: KIT-HD16-XVR3116HS5MP-DS2AE5225TIAX12-10TB-BIOYHCopied!
Built on: XVR-3116HS-5MP-LITE + 8× Hikvision DS-2AE5225TI-A-E + 4× Prolux PXC-612C4W-A-POC. Keeps about 28 days of continuous footage on the included 10TB surveillance hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.
What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a large property or yard — 12 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
The box that saves everything and runs the app
The cameras× 8
Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
What goes on the wall
The cameras× 4
Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
What goes on the wall
The hard drive
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
One plug that powers the cameras
The cable× 12
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the XVR-3116HS-5MP-LITE + 8× Hikvision DS-2AE5225TI-A-E + 4× Prolux PXC-612C4W-A-POC. 12 cameras at 2MP + 4MP — sized for a larger property or yard. The included 10TB surveillance hard drive holds about 28 days of continuous recording — the estimate assumes recording all 12 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 8× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 4× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3116HS-5MP-LITE + 8× Hikvision DS-2AE5225TI-A-E + 4× Prolux PXC-612C4W-A-POC
- Recorder
- 16-channel Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
- Cameras included
- 8× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 4× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
- Camera resolution
- 2MP + 4MP
- Storage
- 10TB surveillance HDD — about 28 days of footage, recording all 12 cameras continuously at high quality (H.265) — the load is 8× 2MP + 4× 4MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 8× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 4× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
