Product Description

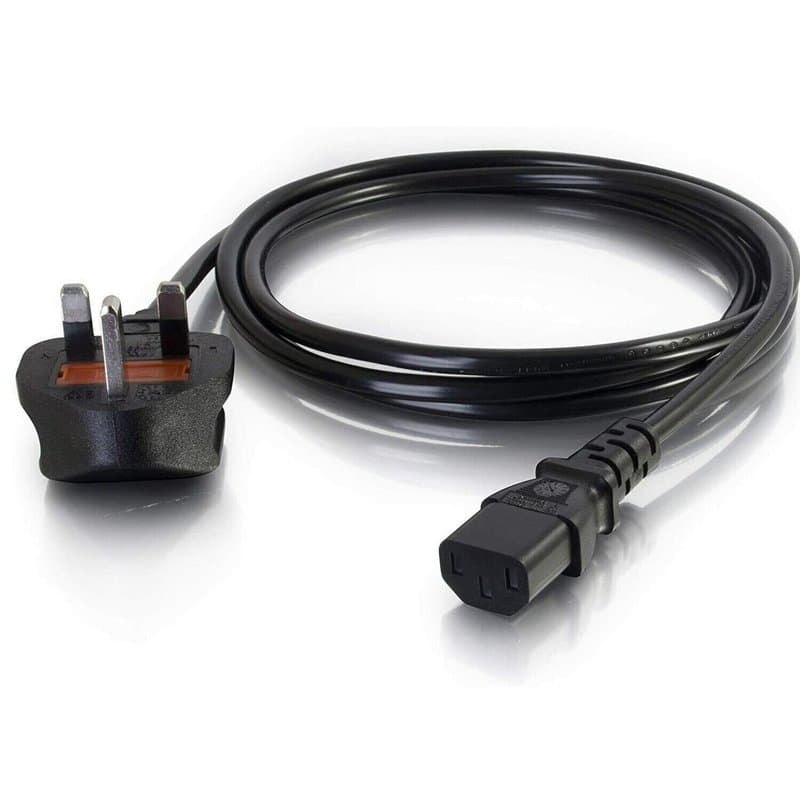

A 1.2m IEC C13 kettle lead for connecting UK-mains-powered rack and desk equipment to a BS1363 socket or PDU outlet. It suits NVRs, DVRs, PoE switches and monitor PSUs fitted with a standard C14 inlet.
Key specs
- Connector: non-rewireable BS1363 fused UK plug (3A/5A/10A fuse variants) to IEC C13 female
- Cable: 3-core H05VV-F cable, with each core insulated in PVC at 3x0.75mm².
- Rating: 10A at 250VAC
- Length: 1.2m
- Options: right-angle or straight C13 connector
- Approval: SVTR/VDE approved construction
- Operating range: -10°C to 70°C
- Finish: black PVC outer sheath
Where it fits on site
Use the 1.2m length for short runs between a rack PDU and mid- or high-U equipment, or from a nearby wall socket into a small comms cabinet serving a retail back-office, warehouse office or residential block plant room. It's not intended as a long equipment-to-wall run — for that, check whether a longer lead suits the layout better.
The right-angle C13 connector helps where PSU clearance behind a shallow rack shelf is tight; the straight connector suits front-panel or open-frame access. Moulded strain relief is built to withstand routine rack door cycling and cable tray routing without stressing the connector joint.
Specify fuse rating to match the connected load and confirm the target device carries a standard IEC C14 inlet before ordering.
Specifications
- Product Type
- IEC C13 Kettle Lead
- Plug Type
- UK BS1363 3-pin fused
- Connector Type
- IEC C13 Female
- Cable Length
- 1.2
- Cable Standard
- H05VV-F
- Conductor Size
- 3x0.75 mm²
- Voltage Rating
- 250 VAC
- Current Rating
- 10
- Fuse Rating
- 5A / 10A / 13A
- Jacket Material
- PVC
- Approval Standards
- SVTR / VDE / BS1363
- Operating Temp
- -10°C to 70°C
- Colour
- Black
Frequently Asked Questions
What fuse rating does the plug have?
It's a non-rewireable BS1363 fused UK plug available in 3A, 5A or 10A fuse variants — specify the rating to match your connected load.
Is this suitable for powering an NVR or PoE switch in a rack?
Yes, the C13 female connector mates with standard IEC C14 inlets found on NVR, DVR, PoE switch and monitor PSU equipment.
What's the difference between the right-angle and straight connector options?
The right-angle C13 connector suits tight clearance behind shallow rack PSUs, while the straight connector suits front-panel or open-frame access.
What cable rating does it carry?
H05VV-F 3-core 0.75mm² PVC insulated cable rated 10A at 250VAC.
