Hikvision & Prolux 16-Channel 4MP – 4K CCTV Kit — 1 DS-2CE78U0T 4K + 11 PXC-612C4W-A 4MP Turret Cameras + 18TB Recording
SKU: KIT-HD16-IDS7216HUHIM-DS2CE78U0TLPX12-18TB-RBDBGCopied!
Built on: Hikvision iDS-7216HUHI-M2/XT + 1× Hikvision DS-2CE78U0T-LPTS + 11× Prolux PXC-612C4W-A-POC. Keeps about 32 days of continuous footage on the included 18TB surveillance hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

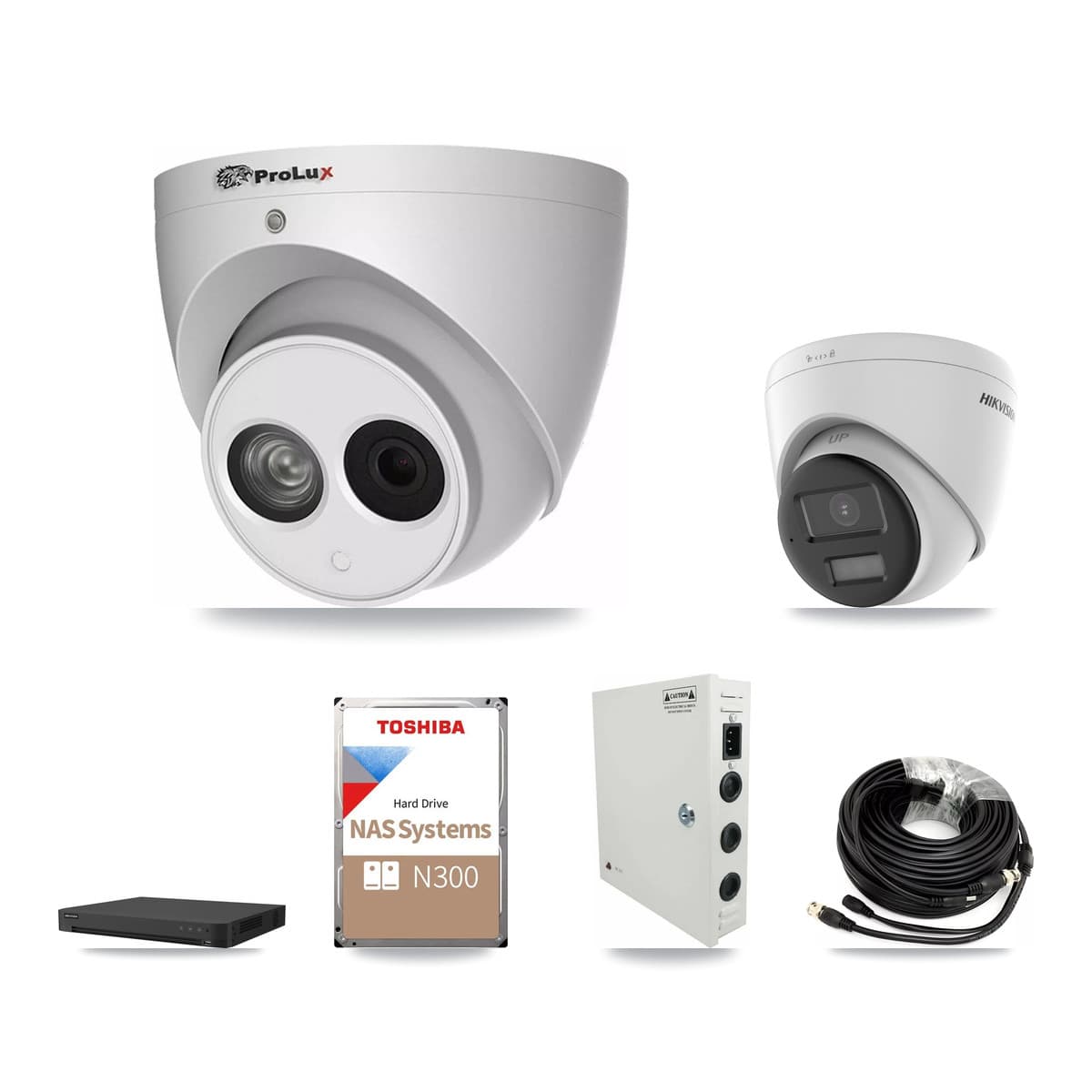

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 12 cameras, keeps about 32 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The cameras× 11
Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
What goes on the wall
The hard drive
Toshiba N300 18TB NAS Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 12
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the Hikvision iDS-7216HUHI-M2/XT + 1× Hikvision DS-2CE78U0T-LPTS + 11× Prolux PXC-612C4W-A-POC. 12 cameras at 4MP + 4K (8MP) — sized for a larger property or yard. The included 18TB surveillance hard drive holds about 32 days of continuous recording — the estimate assumes recording all 12 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 1× Hikvision 4K Two Way Audio Fixed Turret; 11× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba N300 18TB NAS Hard Drive 3.5" SATA 7200RPM; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7216HUHI-M2/XT + 1× Hikvision DS-2CE78U0T-LPTS + 11× Prolux PXC-612C4W-A-POC
- Recorder
- 16-channel Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
- Cameras included
- 1× Hikvision 4K Two Way Audio Fixed Turret; 11× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
- Camera resolution
- 4MP + 4K (8MP)
- Storage
- 18TB surveillance HDD — about 32 days of footage, recording all 12 cameras continuously at high quality (H.265) — the load is 1× 8MP + 11× 4MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 1× Hikvision 4K Two Way Audio Fixed Turret; 11× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba N300 18TB NAS Hard Drive 3.5" SATA 7200RPM; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
