Hikvision & Prolux 16-Channel 2MP CCTV Kit — 13 DS-2AE5225TI PTZ Cameras + 8TB Recording
SKU: KIT-HD16-PXD8216HYK4M-DS2AE5225TIAX13-8TB-1AY2SCopied!
Built on: Prolux PXD-8216-HYK4MP + 13× Hikvision DS-2AE5225TI-A-E. Keeps about 28 days of continuous footage on the included 8TB hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

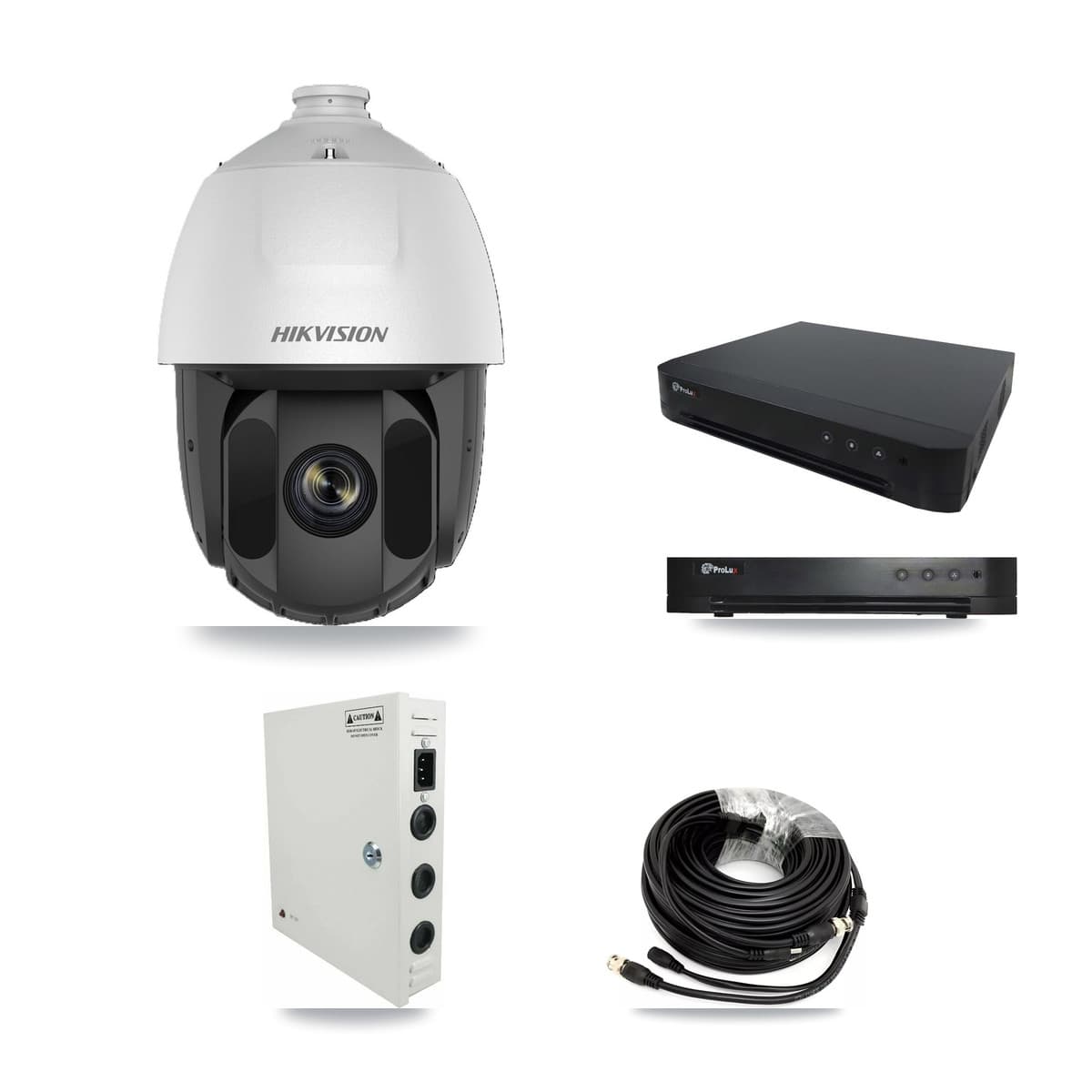

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 13 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
The recorder
PROLUX ( PXD-8216-HYK4MP ) 16 Channel UPTO 4 Megapixel Hybrid (DVR) Same Like DS-7216HQHI-K1
The box that saves everything and runs the app
The cameras× 13
Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
What goes on the wall
The hard drive
Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
One plug that powers the cameras
The cable× 13
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the Prolux PXD-8216-HYK4MP + 13× Hikvision DS-2AE5225TI-A-E. 13 cameras at 2MP — sized for a larger property or yard. The included 8TB hard drive holds about 28 days of continuous recording — the estimate assumes recording all 13 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 13× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× PROLUX ( PXD-8216-HYK4MP ) 16 Channel UPTO 4 Megapixel Hybrid (DVR) Same Like DS-7216HQHI-K1; 13× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 13× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-8216-HYK4MP + 13× Hikvision DS-2AE5225TI-A-E
- Recorder
- 16-channel PROLUX ( PXD-8216-HYK4MP ) 16 Channel UPTO 4 Megapixel Hybrid (DVR) Same Like DS-7216HQHI-K1
- Cameras included
- 13× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
- Camera resolution
- 2MP
- Storage
- 8TB HDD — about 28 days of footage, recording all 13 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit; 13× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× PROLUX ( PXD-8216-HYK4MP ) 16 Channel UPTO 4 Megapixel Hybrid (DVR) Same Like DS-7216HQHI-K1; 13× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 13× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
