Hikvision 32-Channel 2MP CCTV Kit — 4 PTZ + 4 White Dome Cameras + 5TB Recording (IDS-7232HQHI Recorder)
SKU: KIT-HD32-IDS7232HQHIM-DS2AE4225TAHX08-5TB-1GQAJCopied!
Built on: Hikvision iDS-7232HQHI-M2/XT + 4× Hikvision DS-2AE4225T-A + 4× HDT-2MP-N20W-2.8MM. Keeps about 28 days of continuous footage on the included 5TB hard drive.
Low Stock
Only 3 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

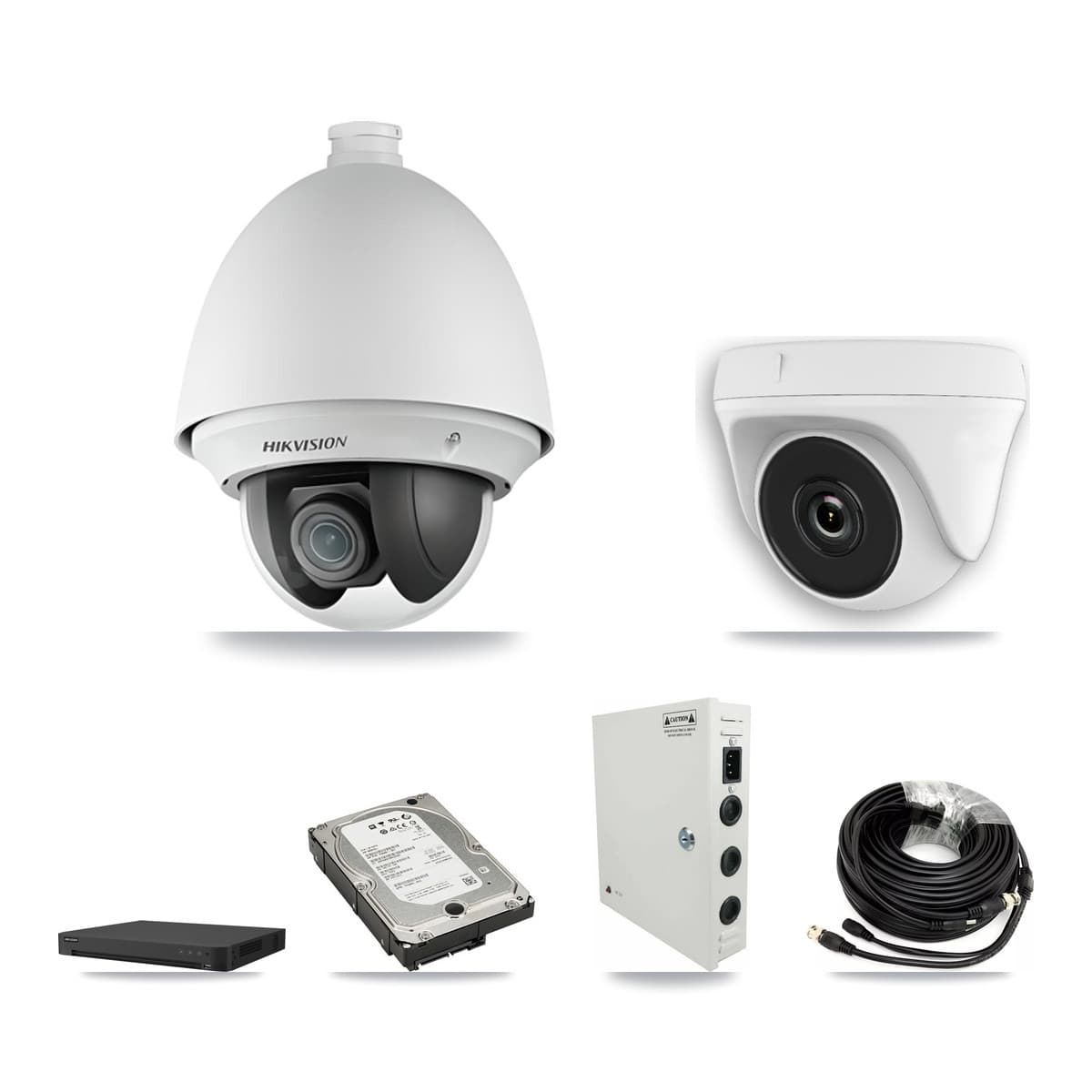

What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a shop or small business — 8 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 32-ch 5MP1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 4
Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome
What goes on the wall
The cameras× 4
2MP HD 4in1 Dome Camera (2.8mm/ White)
What goes on the wall
The hard drive
Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit
One plug that powers the cameras
The cable× 8
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision iDS-7232HQHI-M2/XT + 4× Hikvision DS-2AE4225T-A + 4× HDT-2MP-N20W-2.8MM. 8 cameras at 2MP — sized for a shop or small office. The included 5TB hard drive holds about 28 days of continuous recording — the estimate assumes recording all 8 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 5MP1U H.265 AcuSense DVR; 4× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 4× 2MP HD 4in1 Dome Camera (2.8mm/ White); 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7232HQHI-M2/XT + 4× Hikvision DS-2AE4225T-A + 4× HDT-2MP-N20W-2.8MM
- Recorder
- 32-channel Hikvision 32-ch 5MP1U H.265 AcuSense DVR
- Cameras included
- 4× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 4× 2MP HD 4in1 Dome Camera (2.8mm/ White)
- Camera resolution
- 2MP
- Storage
- 5TB HDD — about 28 days of footage, recording all 8 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 5MP1U H.265 AcuSense DVR; 4× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 4× 2MP HD 4in1 Dome Camera (2.8mm/ White); 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit
