Product Description

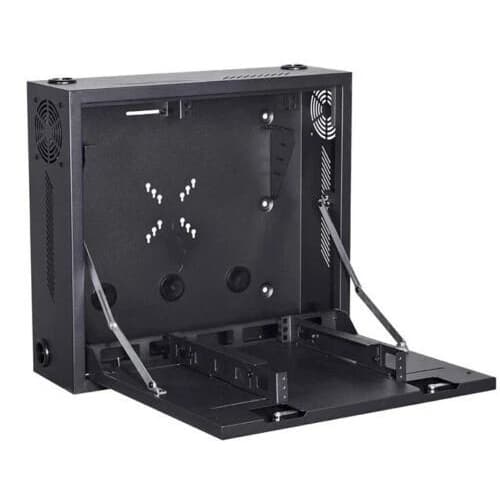

A steel wall-mount enclosure sized to house a CCTV DVR out of casual reach — a fit for comms cupboards, plant rooms and back-office risers on retail, warehouse and office jobs.
Why specify it
- External size: approx. 180mm W × 180mm H × 50mm D — enough for a single DVR without a bulky footprint.
- Steel body with black coating, giving corrosion resistance for equipment rooms and utility spaces.
- Hinged opening panel for fitting the DVR and returning later for drive changes or connection checks.
- Cable entry knockouts keep power and video leads routed through defined points rather than gaps in the casing.
- Ventilation openings allow passive airflow around the installed recorder.
Typical deployment
On a retail or small office install, this enclosure pairs with a DVR and the site's camera runs, sited above head height in a back room or riser cupboard so the recorder isn't sat exposed on a desk. The hinged panel means the installer isn't unbolting the whole box from the wall for routine access — useful where the enclosure sits in a tight cupboard alongside other cabling.
Selection factors
Check the 180 × 180 × 50mm footprint against your DVR's own case dimensions before ordering, and confirm cable entry points line up with your planned camera and power runs into the cupboard or riser.
Specifications
- Width
- 45.72cm
- Height
- 45.72cm
- Depth
- 12.7cm
Technical Specifications
Frequently Asked Questions
What size is this enclosure on the outside?
Roughly 180mm across, 180mm tall and 50mm deep.
What is the enclosure made from?
Built from steel and finished in a black protective coating that resists corrosion.
How can I get to the DVR when it's fitted to the wall?
Through the hinged opening panel, which allows access for installation and later servicing without removing the enclosure.
How is cable routing handled?
The enclosure has cable entry knockouts for organised routing of power and video cables, plus ventilation openings for passive airflow.
