Product Description

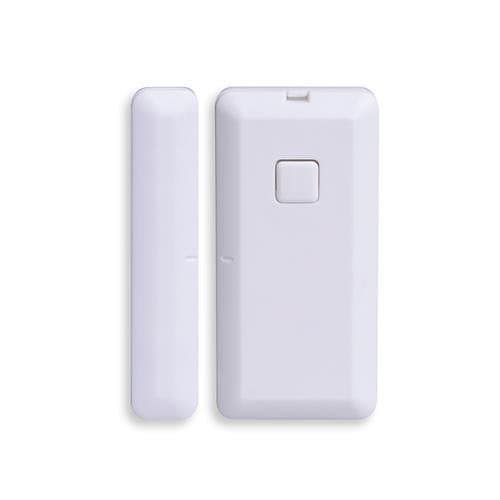

The Texecom GHA-0001 Ricochet Connect Series, Wireless White Magnetic Micro Contact-W is a wireless door and window contact for jobs where visible hardware is a problem. It is small enough to conceal within most uPVC window frames.
Where it fits on a project
Specify it where a client wants openings protected without a obvious device on the frame: windows, doors and valuable assets are all named applications. As a wireless unit it also avoids cable runs to the opening, which helps on occupied sites and finished interiors.
Spec points for the schedule
- Radio: Ricochet mesh technology
- Panel compatibility: Premier Elite control panels, Premier control panels and Ricochet Expansion Packs
- Standard: EN50131-2-6 Grade 2
- Battery: 4-year typical life
- Fixing: adhesive or screw
- Commissioning: LED-assisted setup procedure
- Colour: white
- Part number: Texecom-GHA-0001 (also listed as GR-Texecom-GHA-0001-LN)
Pairing
Use it with a Texecom Premier Elite or Premier panel, or add it to an existing system through a Ricochet Expansion Pack. That makes it a practical way to extend a Texecom installation to extra openings.
Technical Specifications
Frequently Asked Questions
Which control panels work with the Texecom-GHA-0001?
It is compatible with Premier Elite control panels, Premier control panels and Ricochet Expansion Packs.
What security grade does it meet?
It is rated to EN50131-2-6 Grade 2.
How long does the battery last?
The typical battery life is 4 years.
How is the contact fixed?
You can use either adhesive or screw fixing.
