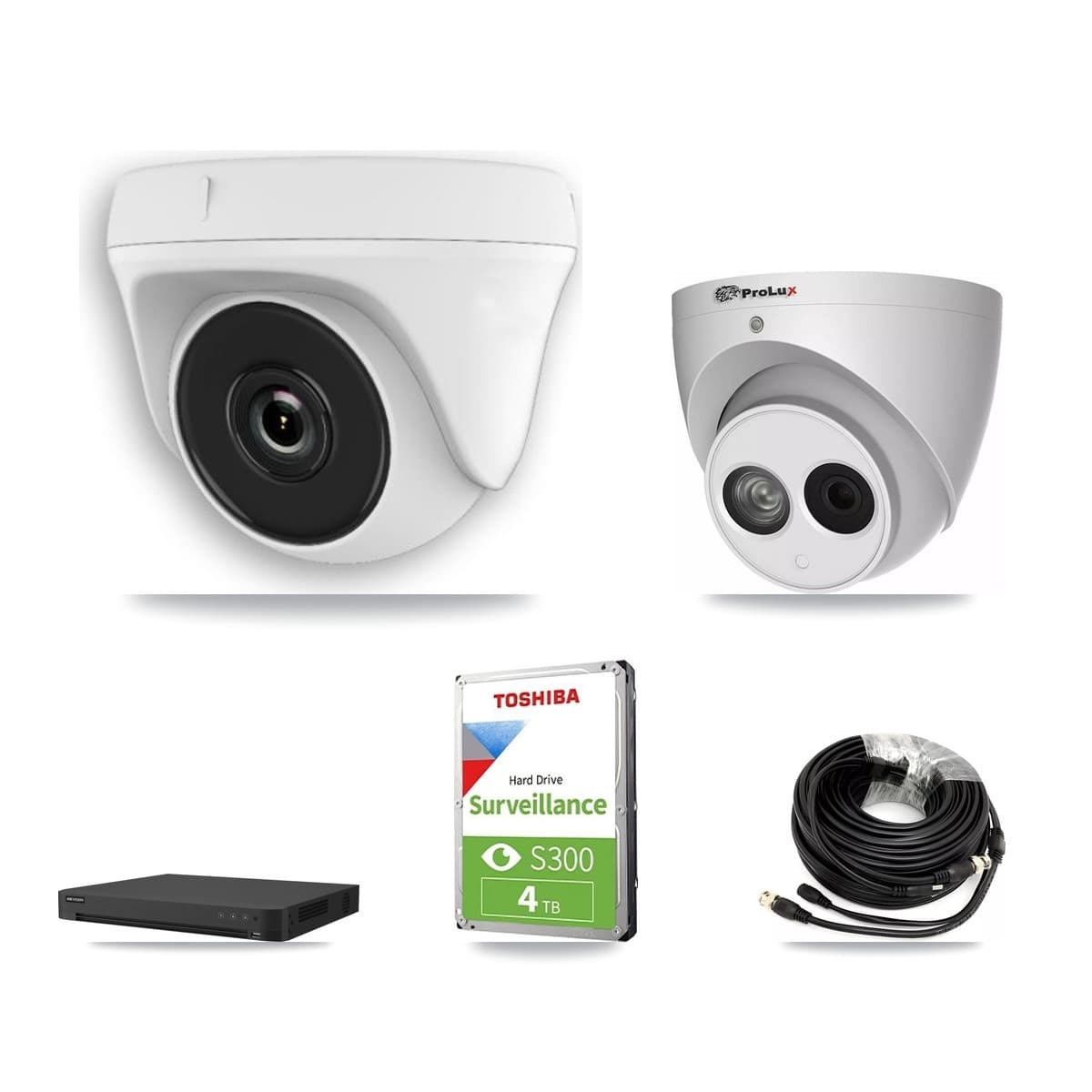

Prolux & Hikvision 32-Channel 2MP – 4MP CCTV Kit — 2 White 2MP Dome + 2 4MP Turret Cameras + 4TB Recording (IDS-7232HQHI Recorder)
SKU: KIT-HD32-IDS7232HQHIM-HDT2MPN20W28X04-4TB-WRARNCopied!
Built on: Hikvision iDS-7232HQHI-M2/XT + 2× HDT-2MP-N20W-2.8MM + 2× Prolux PXC-612C4W-A-POC. Keeps about 30 days of continuous footage on the included 4TB surveillance hard drive.
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.
What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a house — 4 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 32-ch 5MP1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 2
2MP HD 4in1 Dome Camera (2.8mm/ White)
What goes on the wall
The cameras× 2
Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
What goes on the wall
The hard drive
Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM
Where the footage is kept
The power supply
12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
One plug that powers the cameras
The cable× 4
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision iDS-7232HQHI-M2/XT + 2× HDT-2MP-N20W-2.8MM + 2× Prolux PXC-612C4W-A-POC. 4 cameras at 2MP + 4MP — sized for a house or flat. The included 4TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 5MP1U H.265 AcuSense DVR; 2× 2MP HD 4in1 Dome Camera (2.8mm/ White); 2× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7232HQHI-M2/XT + 2× HDT-2MP-N20W-2.8MM + 2× Prolux PXC-612C4W-A-POC
- Recorder
- 32-channel Hikvision 32-ch 5MP1U H.265 AcuSense DVR
- Cameras included
- 2× 2MP HD 4in1 Dome Camera (2.8mm/ White); 2× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
- Camera resolution
- 2MP + 4MP
- Storage
- 4TB surveillance HDD — about 30 days of footage, recording all 4 cameras continuously at high quality (H.265) — the load is 2× 2MP + 2× 4MP
- Cables & PSU included
- 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 5MP1U H.265 AcuSense DVR; 2× 2MP HD 4in1 Dome Camera (2.8mm/ White); 2× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
