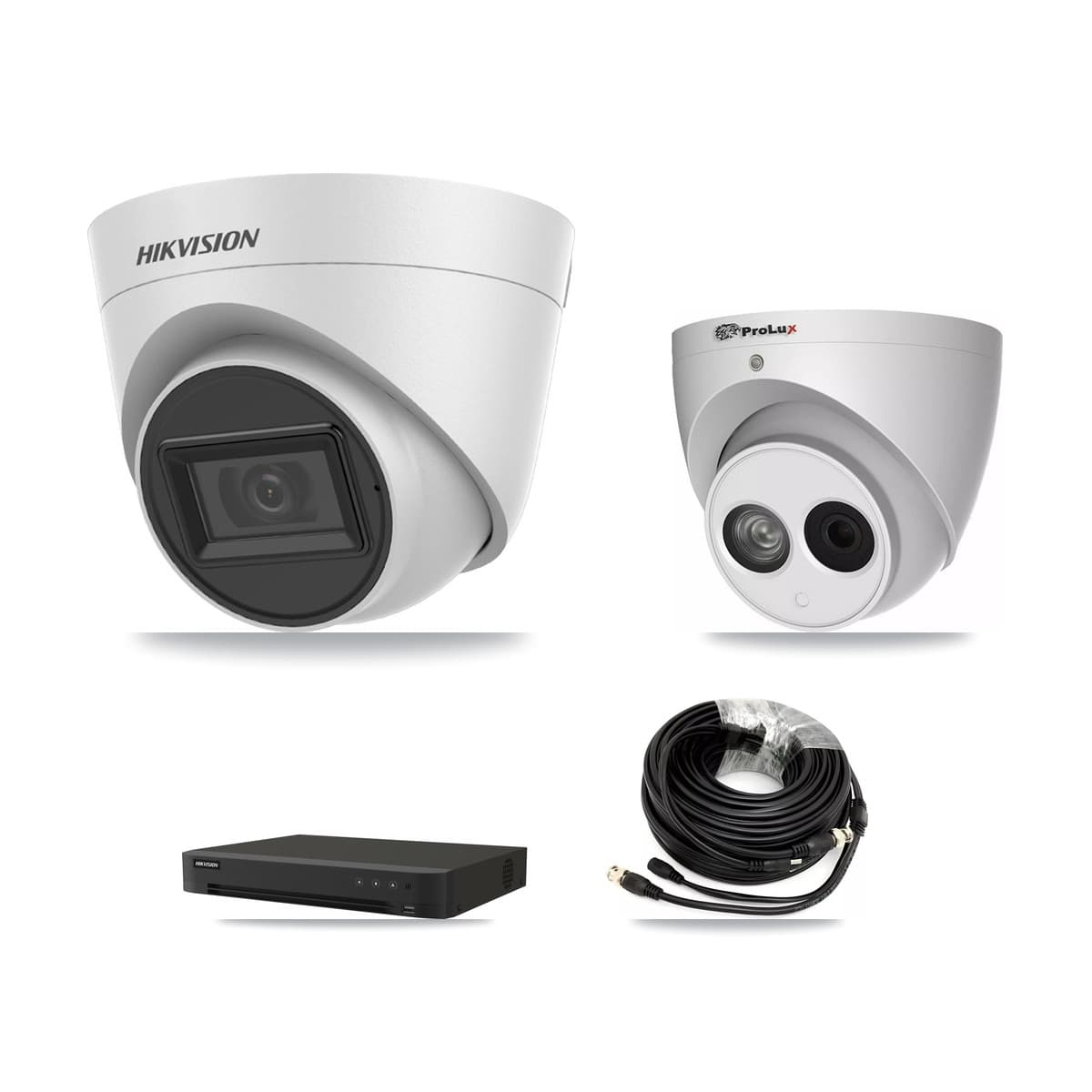

Hikvision & Prolux 16-Channel 4MP – 5MP CCTV Kit — 5 White 5MP + 1 4MP Turret Cameras + 8TB Recording (IDS-7216HQHI Recorder)
SKU: KIT-HD16-IDS7216HQHIM-DS2CE78H0TITX06-8TB-OQHU9Copied!
Built on: Hikvision IDS-7216HQHI-M1/XT + 5× Hikvision DS-2CE78H0T-IT3FS + 1× Prolux PXC-612C4W-A-POC. Keeps about 30 days of continuous footage on the included 8TB hard drive.
Low Stock
Only 2 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.
What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 6 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 16-ch 5MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 5
Hikvision 5 MP Audio Fixed Turret Camera
What goes on the wall
The cameras
Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
What goes on the wall
The hard drive
Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive
Where the footage is kept
The power supply
12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
One plug that powers the cameras
The cable× 6
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the Hikvision IDS-7216HQHI-M1/XT + 5× Hikvision DS-2CE78H0T-IT3FS + 1× Prolux PXC-612C4W-A-POC. 6 cameras at 4MP + 5MP — sized for a shop or small office. The included 8TB hard drive holds about 30 days of continuous recording — the estimate assumes recording all 6 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 16-ch 5MP 1U H.265 AcuSense DVR; 5× Hikvision 5 MP Audio Fixed Turret Camera; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision IDS-7216HQHI-M1/XT + 5× Hikvision DS-2CE78H0T-IT3FS + 1× Prolux PXC-612C4W-A-POC
- Recorder
- 16-channel Hikvision 16-ch 5MP 1U H.265 AcuSense DVR
- Cameras included
- 5× Hikvision 5 MP Audio Fixed Turret Camera; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
- Camera resolution
- 4MP + 5MP
- Storage
- 8TB HDD — about 30 days of footage, recording all 6 cameras continuously at high quality (H.265) — the load is 5× 5MP + 1× 4MP
- Cables & PSU included
- 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 5MP 1U H.265 AcuSense DVR; 5× Hikvision 5 MP Audio Fixed Turret Camera; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
