Hikvision 32-Channel 5MP CCTV Kit — 22 DS-2CE78K0T-LPTS Turret Cameras + 3× 10TB Recording (DS-7332HQHI-K4 Recorder)
SKU: KIT-HD32-DS7332HQHIK4-DS2CE78K0TLPX22-3X10TB-XKU5VCopied!
Built on: Hikvision DS-7332HQHI-K4 + 22× Hikvision DS-2CE78K0T-LPTS. Keeps about 31 days of continuous footage on the included 3× 10TB surveillance hard drives (30TB in total).
Low Stock
Only 6 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

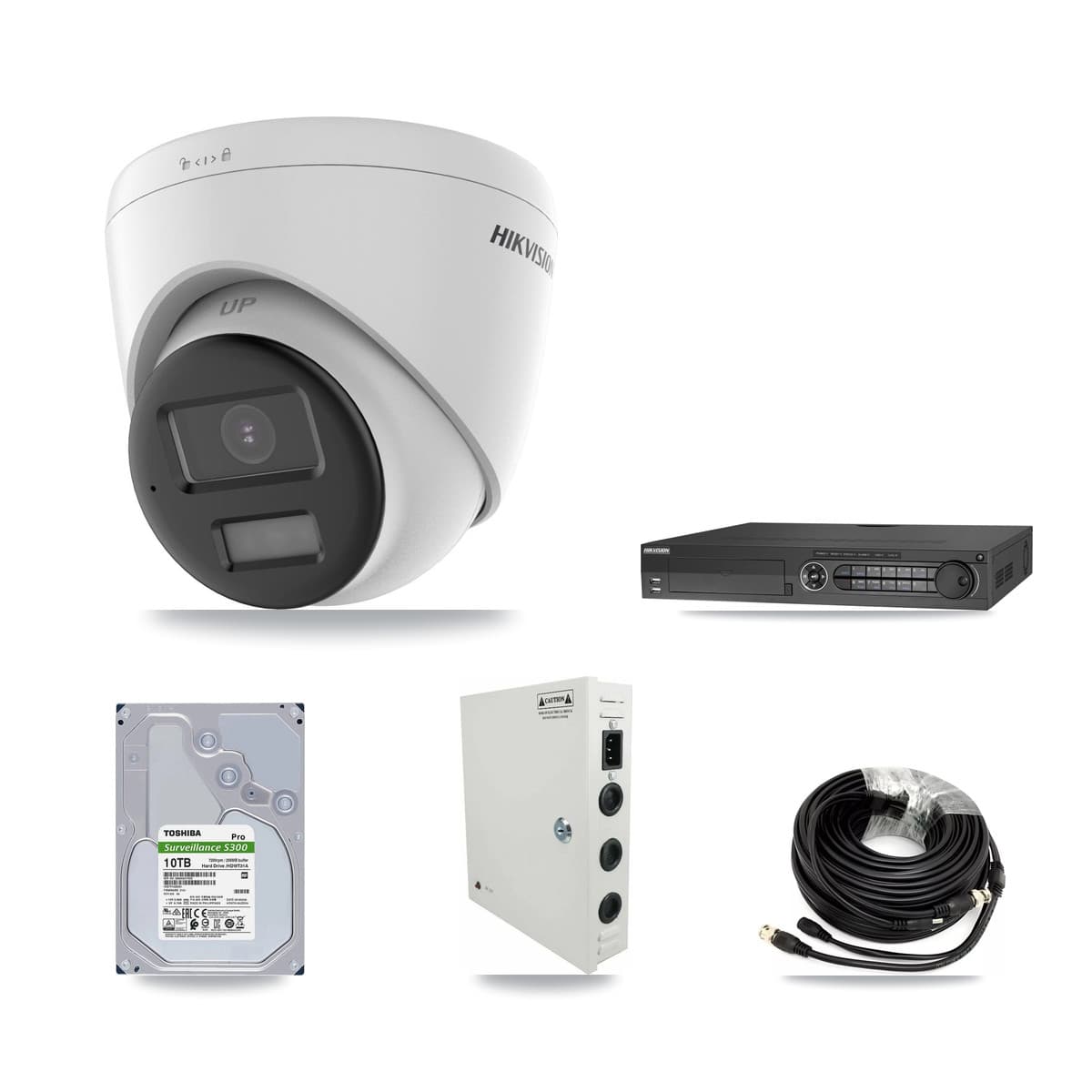

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a commercial site — 22 cameras, keeps about 31 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 32-ch 5mp 1.5U H.265 DVR
The box that saves everything and runs the app
The cameras× 22
Hikvision 3K Two Way Audio Fixed Turret
What goes on the wall
The hard drive× 3
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply× 2
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 22
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision DS-7332HQHI-K4 + 22× Hikvision DS-2CE78K0T-LPTS. 22 cameras at 5MP — sized for a commercial site. The included 3× 10TB surveillance hard drives (30TB in total) hold about 31 days of continuous recording — the estimate assumes recording all 22 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 22× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 5mp 1.5U H.265 DVR; 22× Hikvision 3K Two Way Audio Fixed Turret; 3× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 22× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision DS-7332HQHI-K4 + 22× Hikvision DS-2CE78K0T-LPTS
- Recorder
- 32-channel Hikvision 32-ch 5mp 1.5U H.265 DVR
- Cameras included
- 22× Hikvision 3K Two Way Audio Fixed Turret
- Camera resolution
- 5MP
- Storage
- 3× 10TB (30TB total) surveillance HDD — about 31 days of footage, recording all 22 cameras continuously at high quality (H.265)
- Cables & PSU included
- 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 22× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 5mp 1.5U H.265 DVR; 22× Hikvision 3K Two Way Audio Fixed Turret; 3× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 22× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
