Hikvision 32-Channel 4MP – 5MP CCTV Kit — 19 4MP + 1 5MP Turret Cameras + 2× 12TB Recording
SKU: KIT-IP32-DS7732NIM424-DS2CD1343G2LX20-2X12TB-108EBCopied!
Built on: Hikvision DS-7732NI-M4/24P + 19× Hikvision DS-2CD1343G2-LIUF/SL + 1× Hikvision DS-2CD3356G2-ISU. Keeps about 27 days of continuous footage on the included 2× 12TB surveillance hard drives (24TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

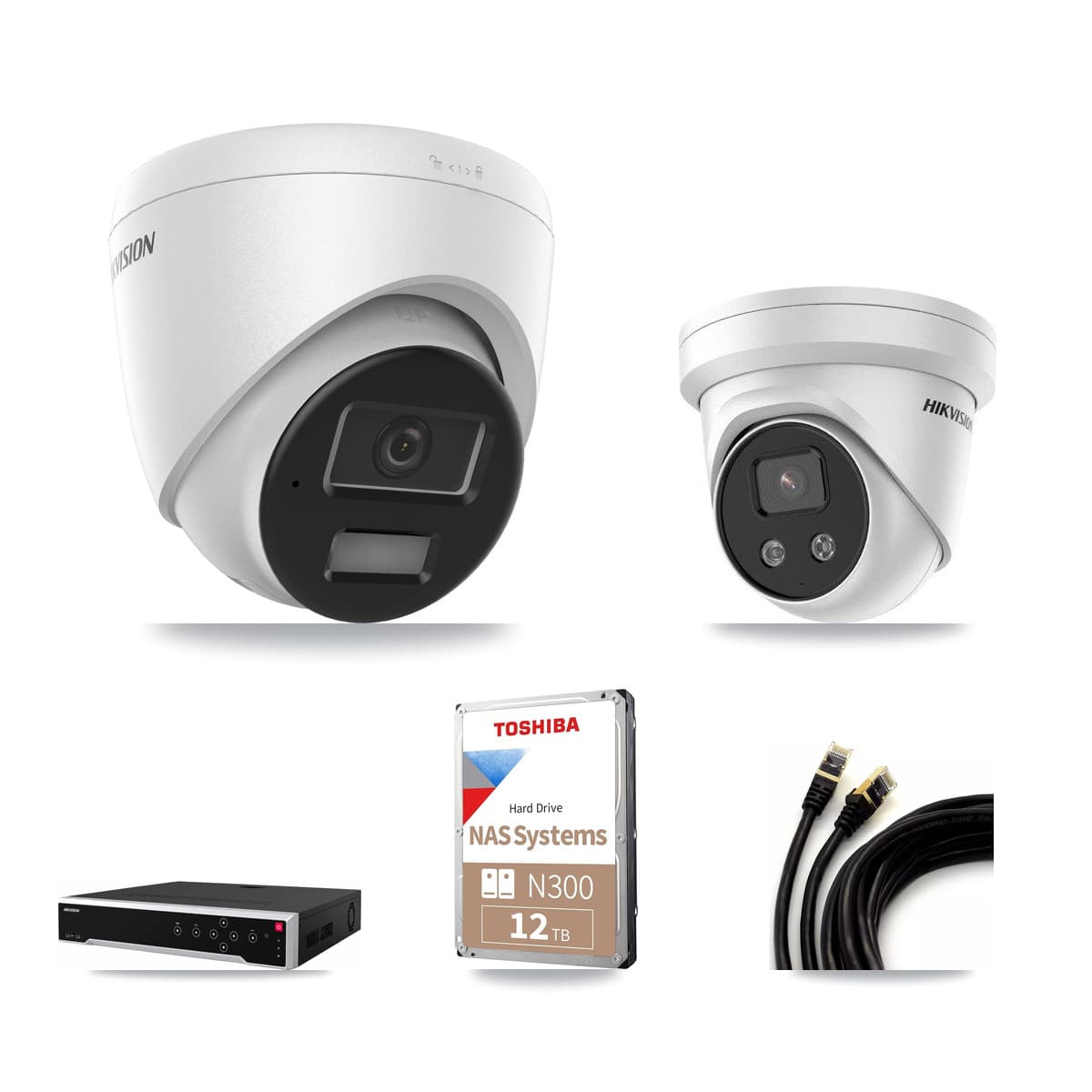

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a commercial site — 20 cameras, keeps about 27 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision 32-ch 1.5U 24 PoE 8K NVR
The box that saves everything and runs the app
The cameras× 19
Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera
What goes on the wall
The cameras
Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm
What goes on the wall
The hard drive× 2
Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD
Where the footage is kept
The cable× 20
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Product Description
A complete 32-channel IP (PoE) CCTV kit built on the Hikvision DS-7732NI-M4/24P + 19× Hikvision DS-2CD1343G2-LIUF/SL + 1× Hikvision DS-2CD3356G2-ISU. 20 cameras at 4MP + 5MP — sized for a commercial site. The included 2× 12TB surveillance hard drives (24TB in total) hold about 27 days of continuous recording — the estimate assumes recording all 20 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 20× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 1.5U 24 PoE 8K NVR; 19× Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera; 1× Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm; 2× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 20× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7732NI-M4/24P + 19× Hikvision DS-2CD1343G2-LIUF/SL + 1× Hikvision DS-2CD3356G2-ISU
- Recorder
- 32-channel Hikvision 32-ch 1.5U 24 PoE 8K NVR
- Cameras included
- 19× Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera; 1× Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm
- Camera resolution
- 4MP + 5MP
- Storage
- 2× 12TB (24TB total) surveillance HDD — about 27 days of footage, recording all 20 cameras continuously at high quality (H.265) — the load is 19× 4MP + 1× 5MP
- Cables & PSU included
- 20× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 1.5U 24 PoE 8K NVR; 19× Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera; 1× Hikvision DS-2CD3356G2-ISU 5MP AcuSense IR PoE Turret Camera 2.8mm; 2× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 20× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
