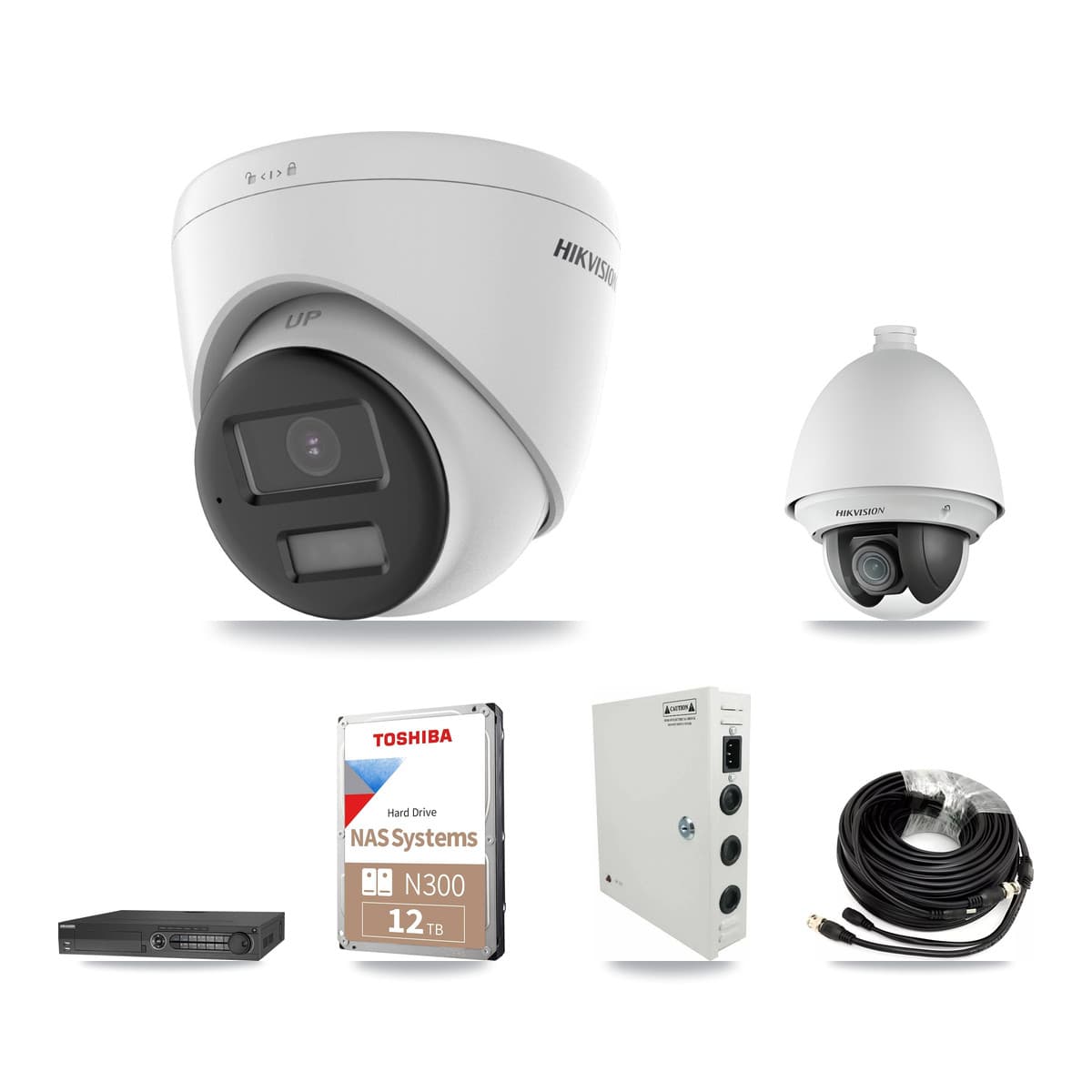

Hikvision 32-Channel 2MP – 4K CCTV Kit — 9 DS-2AE4225T 2MP PTZ + 19 DS-2CE78U0T 4K Turret Cameras + 4× 12TB Recording
SKU: KIT-HD32-IDS7332HUHIM-DS2AE4225TADX28-4X12TB-VNP0JCopied!
Built on: Hikvision iDS-7332HUHI-M4/S + 9× Hikvision DS-2AE4225T-A + 19× Hikvision DS-2CE78U0T-LPTS. Keeps about 26 days of continuous footage on the included 4× 12TB surveillance hard drives (48TB in total).
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
Which camera styles?
The same kit, split differently between camera styles.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.
What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a commercial site — 28 cameras, keeps about 26 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 9
Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome
What goes on the wall
The cameras× 19
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The hard drive× 4
Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD
Where the footage is kept
The power supply× 2
18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
One plug that powers the cameras
The cable× 28
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision iDS-7332HUHI-M4/S + 9× Hikvision DS-2AE4225T-A + 19× Hikvision DS-2CE78U0T-LPTS. 28 cameras at 2MP + 4K (8MP) — sized for a commercial site. The included 4× 12TB surveillance hard drives (48TB in total) hold about 26 days of continuous recording — the estimate assumes recording all 28 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 28× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 9× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 19× Hikvision 4K Two Way Audio Fixed Turret; 4× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 28× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7332HUHI-M4/S + 9× Hikvision DS-2AE4225T-A + 19× Hikvision DS-2CE78U0T-LPTS
- Recorder
- 32-channel Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
- Cameras included
- 9× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 19× Hikvision 4K Two Way Audio Fixed Turret
- Camera resolution
- 2MP + 4K (8MP)
- Storage
- 4× 12TB (48TB total) surveillance HDD — about 26 days of footage, recording all 28 cameras continuously at high quality (H.265) — the load is 9× 2MP + 19× 8MP
- Cables & PSU included
- 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit; 28× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 9× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 19× Hikvision 4K Two Way Audio Fixed Turret; 4× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 28× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
