Hikvision 16-Channel 4K CCTV Kit — 8 DS-2CE12UF3T Bullet Cameras + 2× 10TB Recording
SKU: KIT-HD16-IDS7216HUHIM-DS2CE12UF3TEX08-2X10TB-1C5L3Copied!
Built on: Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2CE12UF3T-E. Keeps about 28 days of continuous footage on the included 2× 10TB surveillance hard drives (20TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

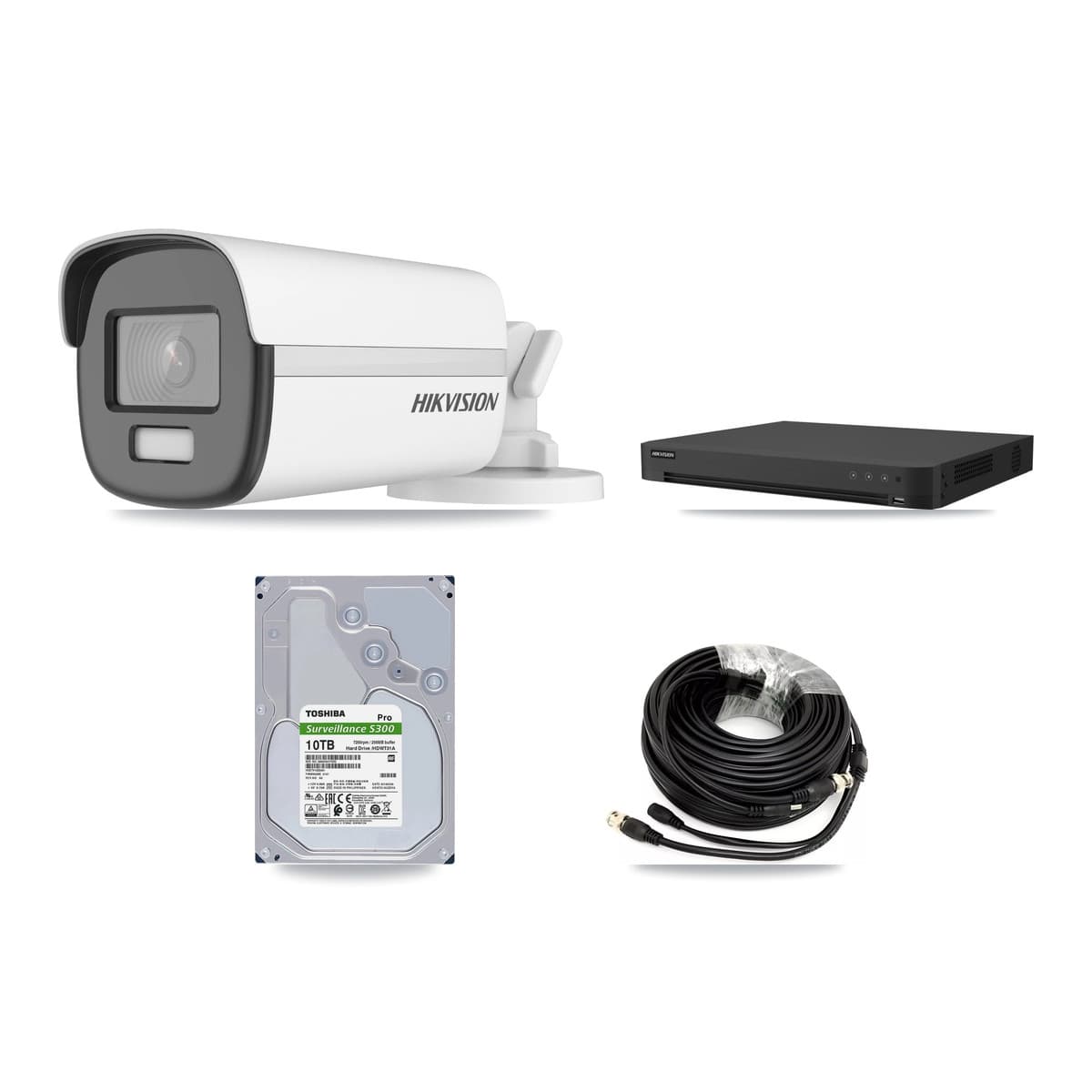

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 8 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 8
Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
What goes on the wall
The hard drive× 2
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply
12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
One plug that powers the cameras
The cable× 8
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2CE12UF3T-E. 8 cameras at 4K (8MP) — sized for a shop or small office. The included 2× 10TB surveillance hard drives (20TB in total) hold about 28 days of continuous recording — the estimate assumes recording all 8 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 8× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2CE12UF3T-E
- Recorder
- 16-channel Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
- Cameras included
- 8× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
- Camera resolution
- 4K (8MP)
- Storage
- 2× 10TB (20TB total) surveillance HDD — about 28 days of footage, recording all 8 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 8× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
