Product Description
Where it fits on a project

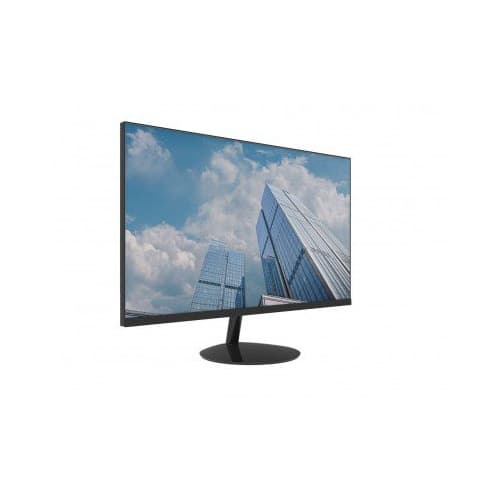

The DHI-LM22-A200D Full HD LED is a Dahua 22-inch monitor for putting recorder footage on a screen at the end of an installation. It also handles everyday computing and office work, so one model can serve a back office, reception desk or site cabin where a DVR or NVR needs a local display.
Specification
- Screen: 22-inch LED, VA panel
- Resolution: 1920 × 1080 (Full HD)
- Contrast ratio: 3000:1
- Viewing angles: 178°
- Inputs: HDMI and VGA
- Mounting: 100 × 100mm VESA
- Brand and MPN: Dahua, DHI-LM22-A200D
Selection notes for installers
- Match the input to the recorder. HDMI or VGA connects to compatible computers, DVRs and NVRs, so check the recorder has a matching output and allow for the cable.
- Wide viewing angle. At 178°, the image stays readable for people looking from the side, which helps where more than one person checks the screen.
- Mounting. The 100 × 100mm VESA pattern takes a suitable wall bracket or monitor arm. Check the bracket or arm is rated for a 22-inch screen.
- Appearance. The slim bezel gives a clean finish where the screen is on show.
Specifications
- Brand
- DAHUA
- Model
- LM22-A200D
- SCreen size
- 22
- Resolution
- 1920 x 1080
- EPREL energy-label registration
- 2139333
Technical Specifications
Manufacturer part numberDHI-LM22-A200D
EAN / barcode6939554907425
Also listed asBDB0191335N100166
SKUDHI-LM22-A200D
Frequently Asked Questions
Which inputs does the DHI-LM22-A200D have?
It has HDMI and VGA inputs for connecting compatible computers, DVRs and NVRs.
What is the resolution and panel type?
It is a 22-inch VA panel running 1920 × 1080 Full HD, with a 3000:1 contrast ratio and 178° viewing angles.
What VESA pattern does it use?
The VESA pattern is 100 × 100mm, so it suits a compatible wall bracket or monitor arm.
