What's in the box
The full contents of the kit are listed here, with the quantity of each part. Selecting a part opens its complete specification.
The kit includes 3 cameras; it keeps roughly 77 days of footage; it uses analogue cameras, so it is worth checking the condition and compatibility of any existing coax before reusing it.
Recorder capacity
The recorder has 16 channels, and the 3 cameras included with the kit occupy 3 of them. As a result, 13 channels stay free should you want to expand the system later. Before adding cameras, it is worth checking three things, because any one of them can limit expansion: which resolutions the recorder accepts, how much recording bandwidth it has, and whether power or PoE ports are free.
Recording storage
The kit includes 10TB of storage. With that storage, you can expect roughly 77 days of continuous H.265 recording. It is an estimate because it assumes each camera's bitrate: 2 Mbps at 2MP or below, 4 Mbps for cameras up to 5MP and 8 Mbps beyond that, added together where the camera models differ. In practice, retention depends on your settings, how much activity the scene has and the usable capacity of the storage, and if you record on motion only, the figure varies with how much activity there is.
Before installation
Before installing, look through the box list to see which cables, mounting accessories and power supplies are included. Then plan cable lengths and camera positions around your layout — as a rule, how many cameras there are does not tell you what will be covered. Finally, at each position, make sure the lens gives the field of view you need and that the lighting and weather protection suit it.
Price on request
The kit includes one part without a published price, the Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM, which is quoted individually. That is why the kit as a whole is priced for you on request, rather than shown with a total. The rest of the contents are listed below.

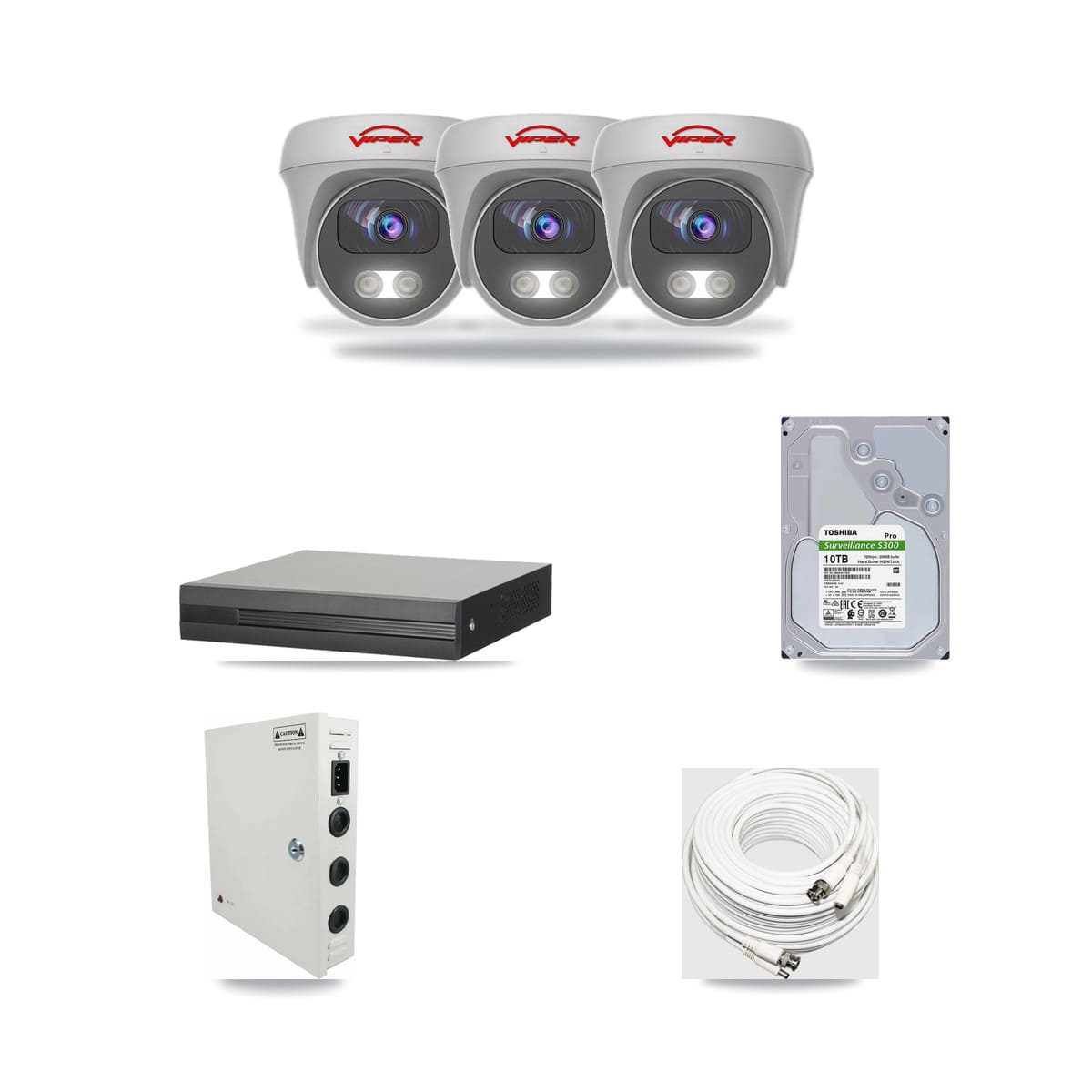

The recorder
1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
The unit that records every camera and runs the viewing app
The cameras
3× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
The part that is mounted on the wall
The hard drive
1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the recorded footage is stored
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
A single plug that powers all the cameras
The cable
3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Runs between each camera and the recorder
In practice the kit is a starting point: open it in the builder and you can swap the cameras, move to a larger drive or lengthen the cable runs. Every substitution is checked against the remaining parts as you make it, so the builder never lets you assemble parts that do not work together.
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the XVR-3116HS-5MP-LITE + 3× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 3 cameras at 5MP — sized for a house or flat. The included 10TB surveillance hard drive holds about 77 days of continuous recording — the estimate assumes recording all 3 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 3× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3116HS-5MP-LITE + 3× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 16-channel Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR)
- Cameras included
- 3× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 10TB surveillance HDD — about 77 days of footage, recording all 3 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× Unbranded – 16 Channel 5MP HYBRID Digital Video Recorder (DVR); 3× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
