Hikvision & Prolux 8-Channel 5MP – 4K CCTV Kit — 2 DS-2CE12KF3T 5MP Bullet + 6 DS-2CE78U0T 4K Turret Cameras + 2× 10TB Recording
SKU: KIT-HD8-PXD5208AN4KL-DS2CE12KF3TPX08-2X10TB-YFASACopied!
Built on: Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2CE12KF3T-PIRXO + 6× Hikvision DS-2CE78U0T-LPTS. Keeps about 33 days of continuous footage on the included 2× 10TB surveillance hard drives (20TB in total).
Low Stock
Only 9 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
Which camera styles?
The same kit, split differently between camera styles.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

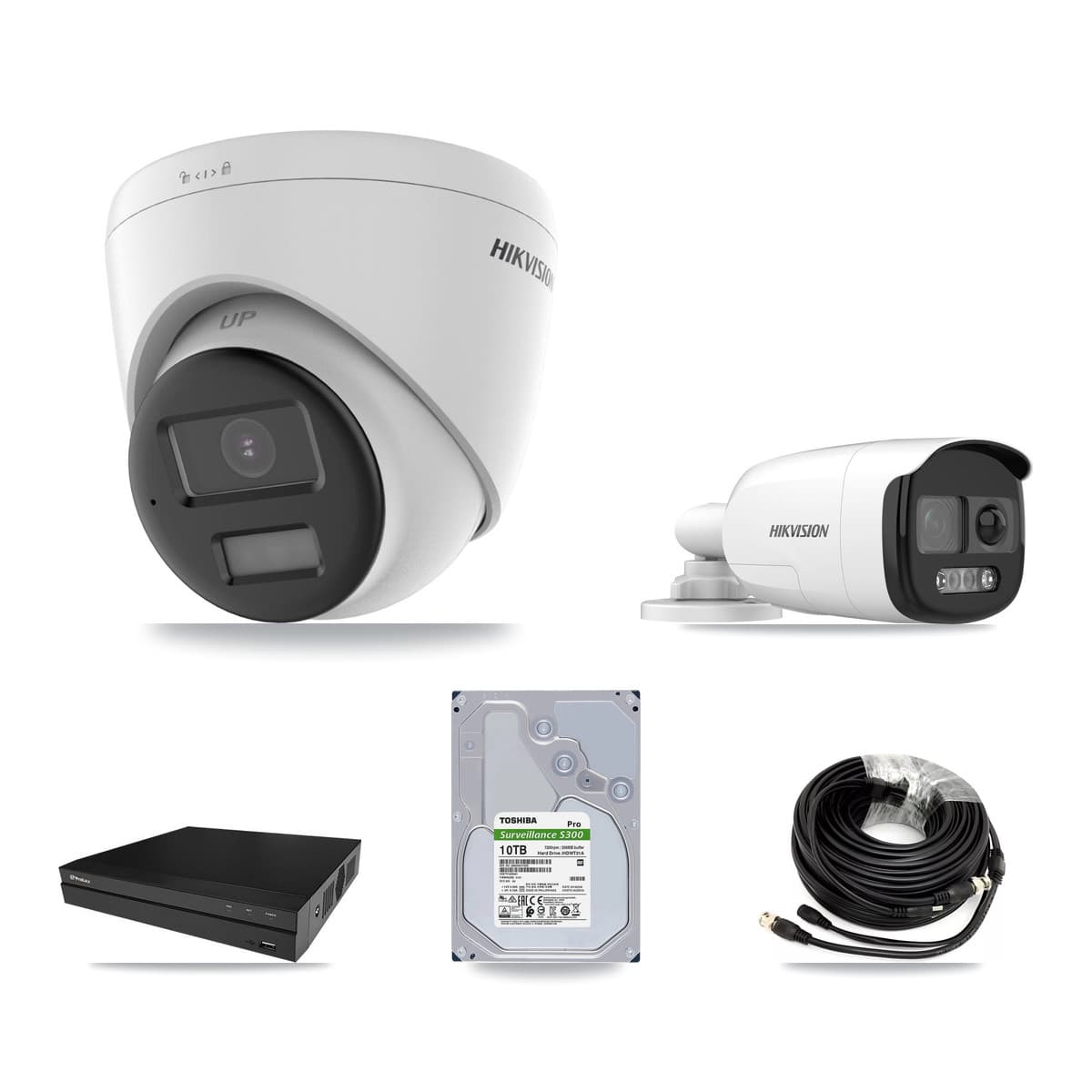

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 8 cameras, keeps about 33 days of footage, it reuses the round coax cable an older system left behind.
The recorder
ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
The box that saves everything and runs the app
The cameras× 2
HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera
What goes on the wall
The cameras× 6
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The hard drive× 2
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply
12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
One plug that powers the cameras
The cable× 8
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2CE12KF3T-PIRXO + 6× Hikvision DS-2CE78U0T-LPTS. 8 cameras at 5MP + 4K (8MP) — sized for a shop or small office. The included 2× 10TB surveillance hard drives (20TB in total) hold about 33 days of continuous recording — the estimate assumes recording all 8 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 2× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 6× Hikvision 4K Two Way Audio Fixed Turret; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2CE12KF3T-PIRXO + 6× Hikvision DS-2CE78U0T-LPTS
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 2× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 6× Hikvision 4K Two Way Audio Fixed Turret
- Camera resolution
- 5MP + 4K (8MP)
- Storage
- 2× 10TB (20TB total) surveillance HDD — about 33 days of footage, recording all 8 cameras continuously at high quality (H.265) — the load is 2× 5MP + 6× 8MP
- Cables & PSU included
- 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 2× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 6× Hikvision 4K Two Way Audio Fixed Turret; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
