Hikvision & Dahua 8-Channel 2MP CCTV Kit — 2 PTZ + 4 Dome Cameras + 4TB Recording
SKU: KIT-HD8-XVR3108AD4K-DS2AE4225TAHX06-4TB-4C7BFCopied!
Built on: Dahua XVR-3108AD-4K + 2× Hikvision DS-2AE4225T-A + 4× HDT-2MP-N20W-2.8MM. Keeps about 30 days of continuous footage on the included 4TB surveillance hard drive.
Low Stock
Only 6 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

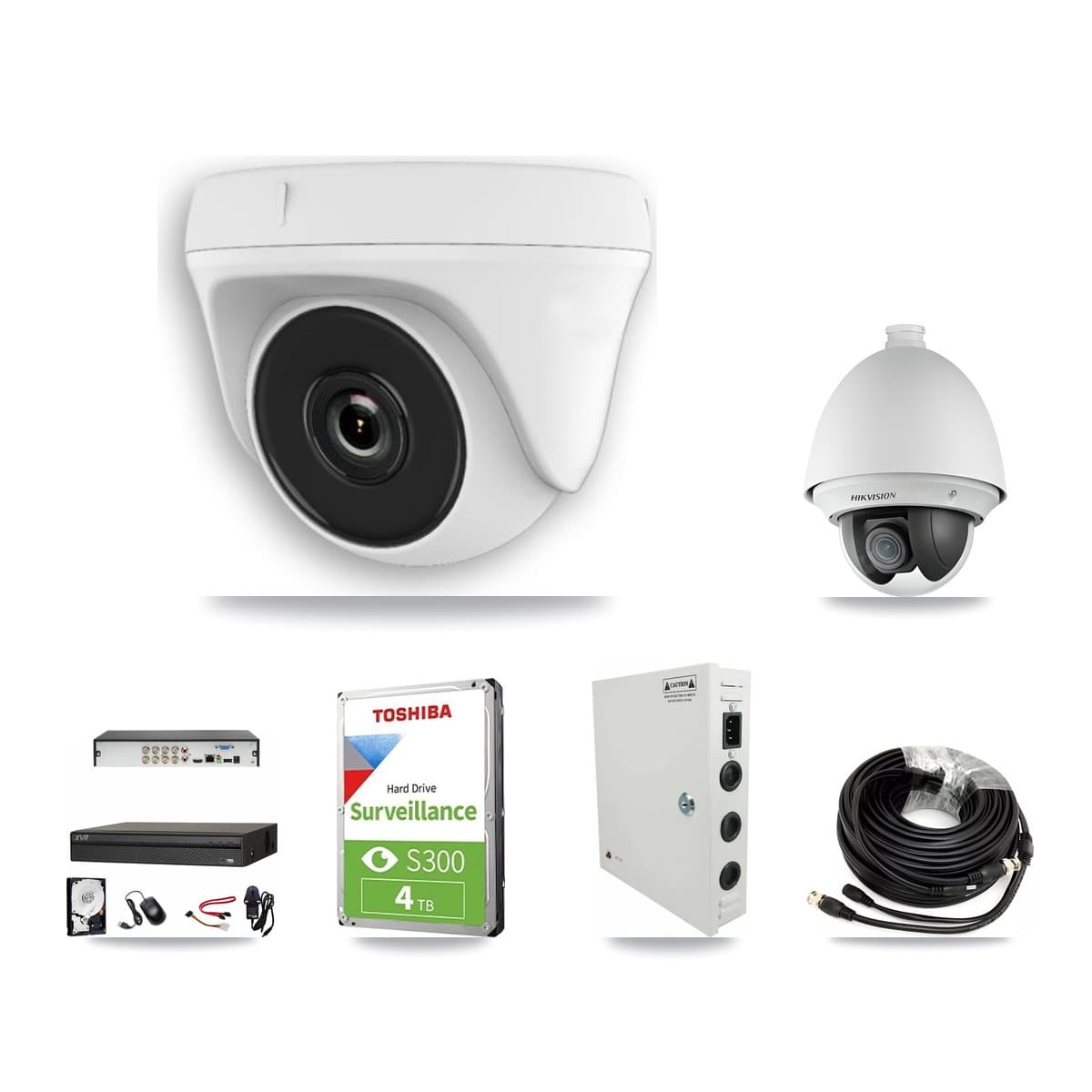

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 6 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
The recorder
XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
The box that saves everything and runs the app
The cameras× 2
Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome
What goes on the wall
The cameras× 4
2MP HD 4in1 Dome Camera (2.8mm/ White)
What goes on the wall
The hard drive
Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 6
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Dahua XVR-3108AD-4K + 2× Hikvision DS-2AE4225T-A + 4× HDT-2MP-N20W-2.8MM. 6 cameras at 2MP — sized for a shop or small office. The included 4TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 6 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 2× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 4× 2MP HD 4in1 Dome Camera (2.8mm/ White); 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free DMSS app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Dahua XVR-3108AD-4K + 2× Hikvision DS-2AE4225T-A + 4× HDT-2MP-N20W-2.8MM
- Recorder
- 8-channel XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua
- Cameras included
- 2× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 4× 2MP HD 4in1 Dome Camera (2.8mm/ White)
- Camera resolution
- 2MP
- Storage
- 4TB surveillance HDD — about 30 days of footage, recording all 6 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× XVR-3108AD 8CH 4K Hybrid CCTV DVR 8MP XVR Powered By Dahua; 2× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 4× 2MP HD 4in1 Dome Camera (2.8mm/ White); 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
