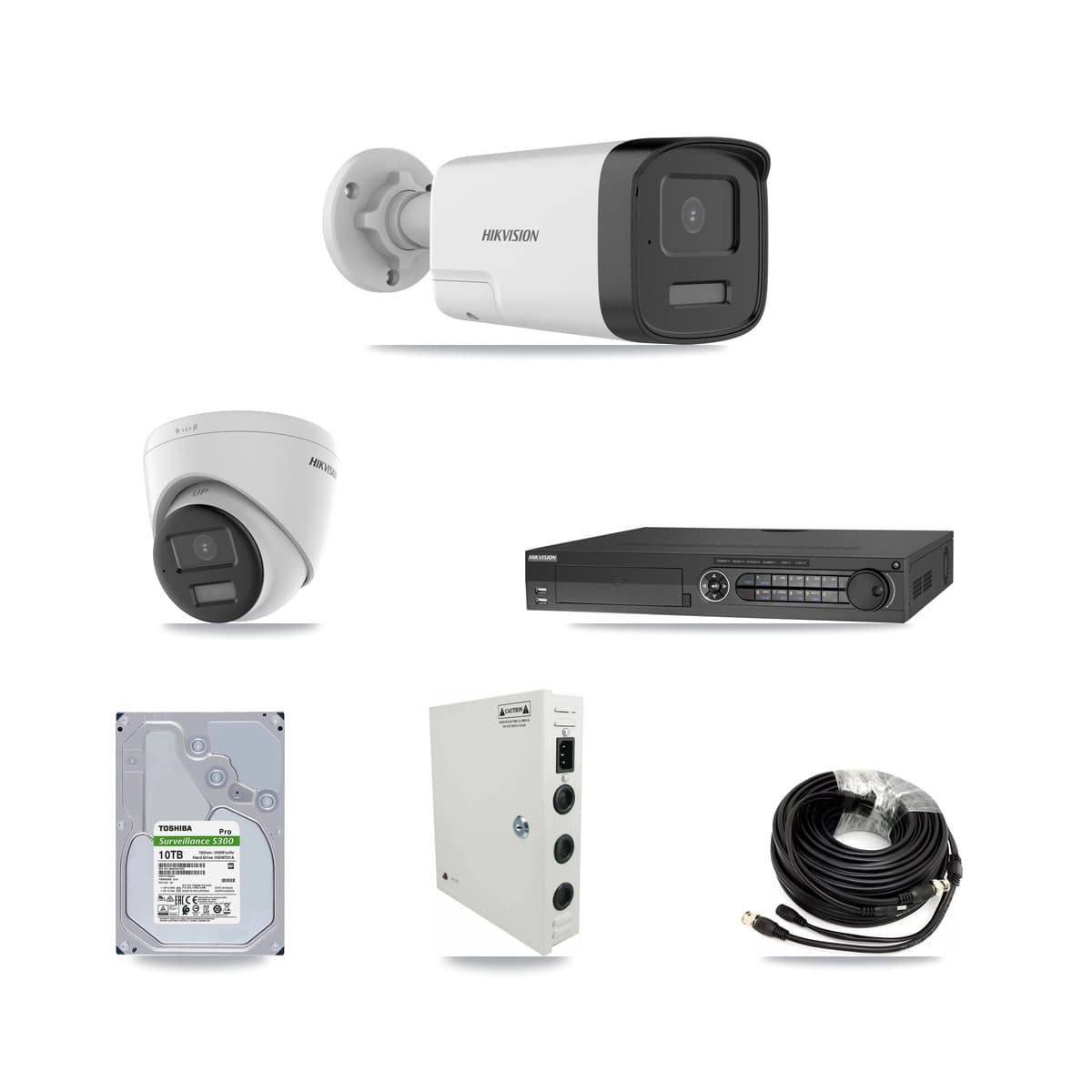

Hikvision 32-Channel 5MP – 4K CCTV Kit — 17 DS-2CE17K0T 5MP Bullet + 8 DS-2CE78U0T 4K Turret Cameras + 4× 10TB Recording
SKU: KIT-HD32-IDS7332HUHIM-DS2CE17K0TLXX25-4X10TB-1HT1YCopied!
Built on: Hikvision iDS-7332HUHI-M4/S + 17× Hikvision DS-2CE17K0T-LXTS + 8× Hikvision DS-2CE78U0T-LPTS. Keeps about 28 days of continuous footage on the included 4× 10TB surveillance hard drives (40TB in total).
Low Stock
Only 2 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.
What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a commercial site — 25 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 17
Hikvision 3K Two Way Audio & Siren Fixed Bullet Camera
What goes on the wall
The cameras× 8
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The hard drive× 4
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply× 2
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 25
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision iDS-7332HUHI-M4/S + 17× Hikvision DS-2CE17K0T-LXTS + 8× Hikvision DS-2CE78U0T-LPTS. 25 cameras at 5MP + 4K (8MP) — sized for a commercial site. The included 4× 10TB surveillance hard drives (40TB in total) hold about 28 days of continuous recording — the estimate assumes recording all 25 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 25× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 17× Hikvision 3K Two Way Audio & Siren Fixed Bullet Camera; 8× Hikvision 4K Two Way Audio Fixed Turret; 4× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 25× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7332HUHI-M4/S + 17× Hikvision DS-2CE17K0T-LXTS + 8× Hikvision DS-2CE78U0T-LPTS
- Recorder
- 32-channel Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
- Cameras included
- 17× Hikvision 3K Two Way Audio & Siren Fixed Bullet Camera; 8× Hikvision 4K Two Way Audio Fixed Turret
- Camera resolution
- 5MP + 4K (8MP)
- Storage
- 4× 10TB (40TB total) surveillance HDD — about 28 days of footage, recording all 25 cameras continuously at high quality (H.265) — the load is 17× 5MP + 8× 8MP
- Cables & PSU included
- 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 25× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 17× Hikvision 3K Two Way Audio & Siren Fixed Bullet Camera; 8× Hikvision 4K Two Way Audio Fixed Turret; 4× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 25× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
