Hikvision 16-Channel 5MP CCTV Kit — 8 DS-2CE12KF3T Bullet + 8 DS-2CE72KF3T Turret Cameras + 2× 10TB Recording
SKU: KIT-HD16-IDS7216HUHIM-DS2CE12KF3TPX16-2X10TB-VJ28ACopied!
Built on: Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2CE12KF3T-PIRXO + 8× Hikvision DS-2CE72KF3T-PIRXO. Keeps about 28 days of continuous footage on the included 2× 10TB surveillance hard drives (20TB in total).
Low Stock
Only 9 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
Which camera styles?
The same kit, split differently between camera styles.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

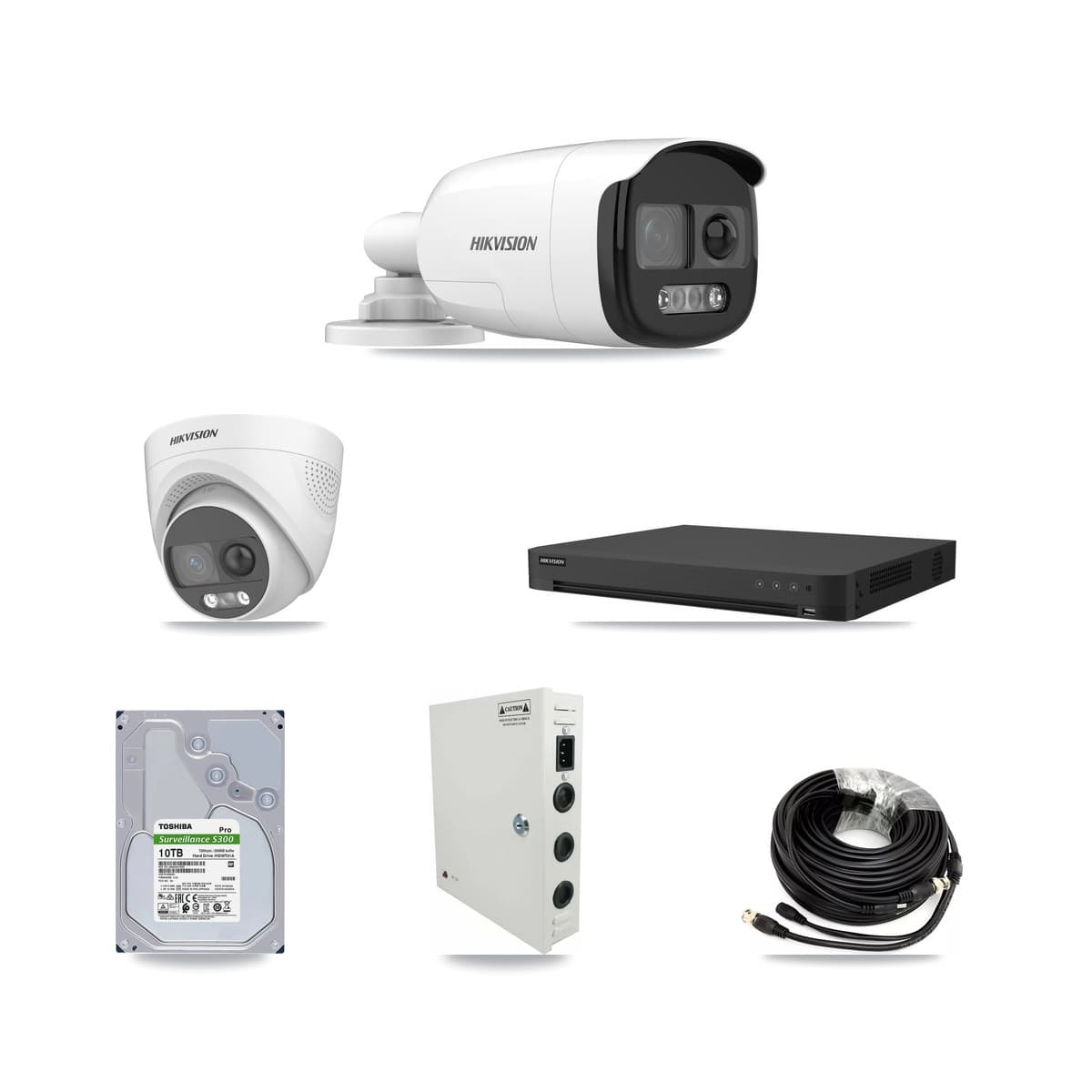

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 16 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 8
HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera
What goes on the wall
The cameras× 8
HIKVISION 3K ColorVu PIR Siren Fixed Turret Camera
What goes on the wall
The hard drive× 2
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 16
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2CE12KF3T-PIRXO + 8× Hikvision DS-2CE72KF3T-PIRXO. 16 cameras at 5MP — sized for a larger property or yard. The included 2× 10TB surveillance hard drives (20TB in total) hold about 28 days of continuous recording — the estimate assumes recording all 16 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 8× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 8× HIKVISION 3K ColorVu PIR Siren Fixed Turret Camera; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2CE12KF3T-PIRXO + 8× Hikvision DS-2CE72KF3T-PIRXO
- Recorder
- 16-channel Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
- Cameras included
- 8× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 8× HIKVISION 3K ColorVu PIR Siren Fixed Turret Camera
- Camera resolution
- 5MP
- Storage
- 2× 10TB (20TB total) surveillance HDD — about 28 days of footage, recording all 16 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 8× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 8× HIKVISION 3K ColorVu PIR Siren Fixed Turret Camera; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
