Hikvision 16-Channel 4MP CCTV Kit — 8 Turret + 1 Bullet Cameras + 12TB Recording
SKU: KIT-IP16-DS7616NIM216-DS2CD2347G3LX09-12TB-10Y38Copied!
Built on: Hikvision DS-7616NI-M2/16P + 8× DS-2CD2347G3-LIS2UY/SL + 1× Hikvision DS-2CD2T47G2H-LISU/SL. Keeps about 30 days of continuous footage on the included 12TB surveillance hard drive.
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

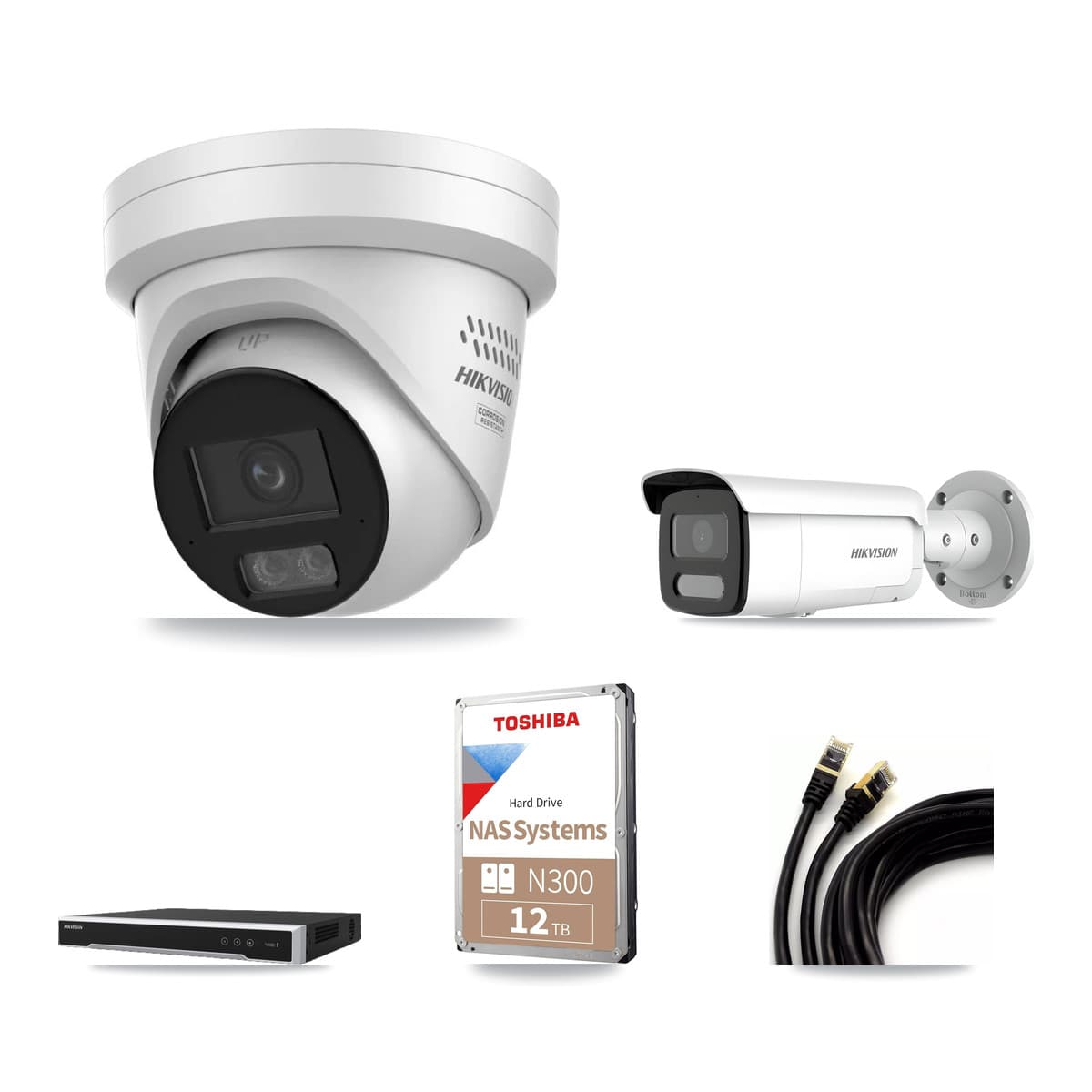

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 9 cameras, keeps about 30 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision 16-ch 1U 16 PoE 8K NVR
The box that saves everything and runs the app
The cameras× 8
4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
What goes on the wall
The cameras
Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
What goes on the wall
The hard drive
Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD
Where the footage is kept
The cable× 9
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Product Description
A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NI-M2/16P + 8× DS-2CD2347G3-LIS2UY/SL + 1× Hikvision DS-2CD2T47G2H-LISU/SL. 9 cameras at 4MP — sized for a larger property or yard. The included 12TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 9 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 9× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 8× 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera; 1× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 9× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NI-M2/16P + 8× DS-2CD2347G3-LIS2UY/SL + 1× Hikvision DS-2CD2T47G2H-LISU/SL
- Recorder
- 16-channel Hikvision 16-ch 1U 16 PoE 8K NVR
- Cameras included
- 8× 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera; 1× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
- Camera resolution
- 4MP
- Storage
- 12TB surveillance HDD — about 30 days of footage, recording all 9 cameras continuously at high quality (H.265)
- Cables & PSU included
- 9× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 8× 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera; 1× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 9× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
