Hikvision 16-Channel 2MP CCTV Kit — 1 Dome + 15 PTZ Cameras + 10TB Recording
SKU: KIT-IP16-DS7616NIM216-DS2CD2723G0IX16-10TB-107T7Copied!
Built on: Hikvision DS-7616NI-M2/16P + 1× Hikvision DS-2CD2723G0-IZS-2.8-12MM + 15× Hikvision DS-2DE5232IW-AE-S6. Keeps about 28 days of continuous footage on the included 10TB surveillance hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
Which camera styles?
The same kit, split differently between camera styles.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

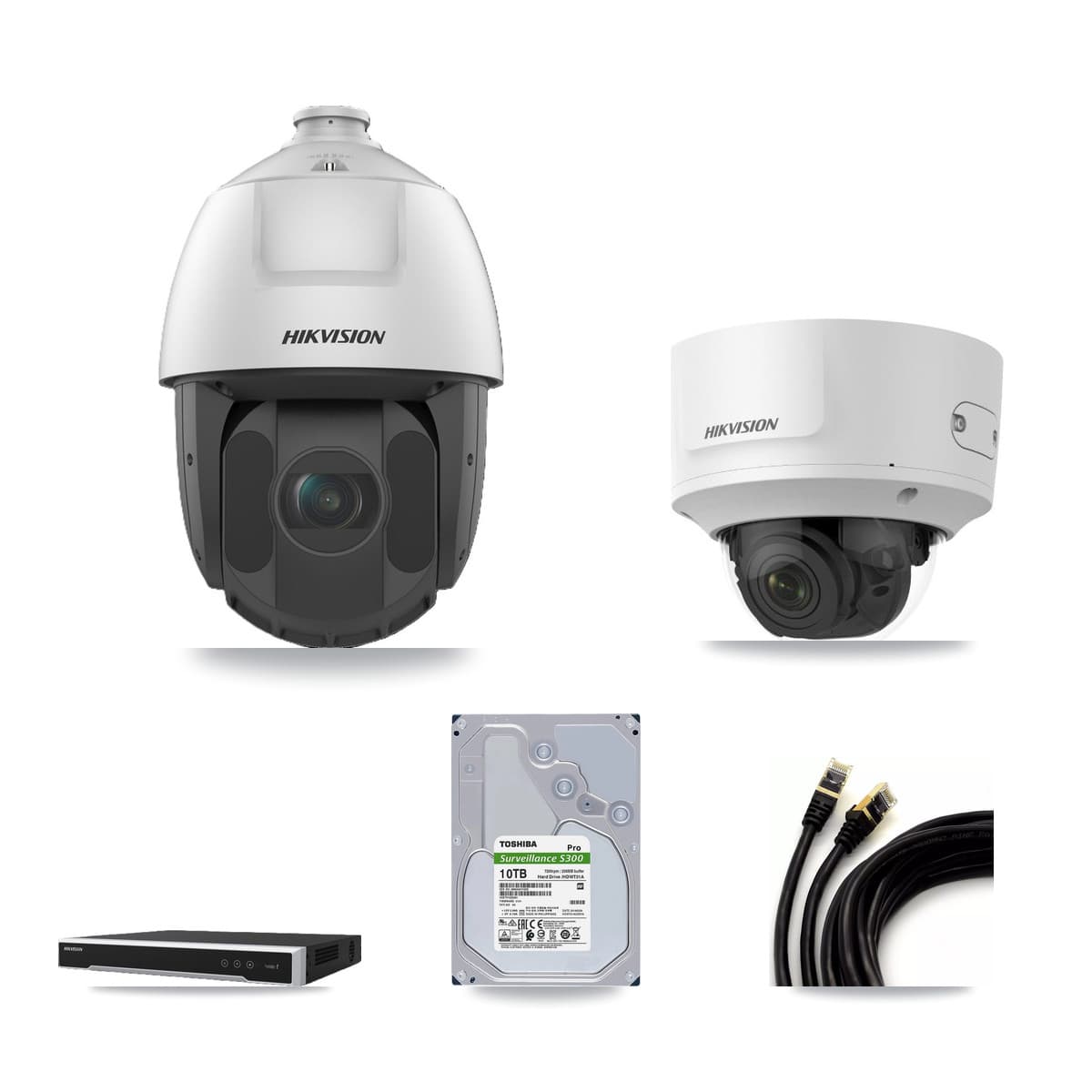

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 16 cameras, keeps about 28 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision 16-ch 1U 16 PoE 8K NVR
The box that saves everything and runs the app
The cameras
Hikvision DS-2CD2723G0-IZS 2MP Motorized Varifocal PoE Dome Camera IP66
What goes on the wall
The cameras× 15
Hikvision DS-2DE5232IW-AE(S6) 2MP 32× PTZ Network Camera IR 150m
What goes on the wall
The hard drive
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The cable× 16
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Product Description
A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NI-M2/16P + 1× Hikvision DS-2CD2723G0-IZS-2.8-12MM + 15× Hikvision DS-2DE5232IW-AE-S6. 16 cameras at 2MP — sized for a larger property or yard. The included 10TB surveillance hard drive holds about 28 days of continuous recording — the estimate assumes recording all 16 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 16× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 1× Hikvision DS-2CD2723G0-IZS 2MP Motorized Varifocal PoE Dome Camera IP66; 15× Hikvision DS-2DE5232IW-AE(S6) 2MP 32× PTZ Network Camera IR 150m; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 16× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NI-M2/16P + 1× Hikvision DS-2CD2723G0-IZS-2.8-12MM + 15× Hikvision DS-2DE5232IW-AE-S6
- Recorder
- 16-channel Hikvision 16-ch 1U 16 PoE 8K NVR
- Cameras included
- 1× Hikvision DS-2CD2723G0-IZS 2MP Motorized Varifocal PoE Dome Camera IP66; 15× Hikvision DS-2DE5232IW-AE(S6) 2MP 32× PTZ Network Camera IR 150m
- Camera resolution
- 2MP
- Storage
- 10TB surveillance HDD — about 28 days of footage, recording all 16 cameras continuously at high quality (H.265)
- Cables & PSU included
- 16× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 1× Hikvision DS-2CD2723G0-IZS 2MP Motorized Varifocal PoE Dome Camera IP66; 15× Hikvision DS-2DE5232IW-AE(S6) 2MP 32× PTZ Network Camera IR 150m; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 16× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
